KINGBRIGHT SA5611SURKWA Numeric Display

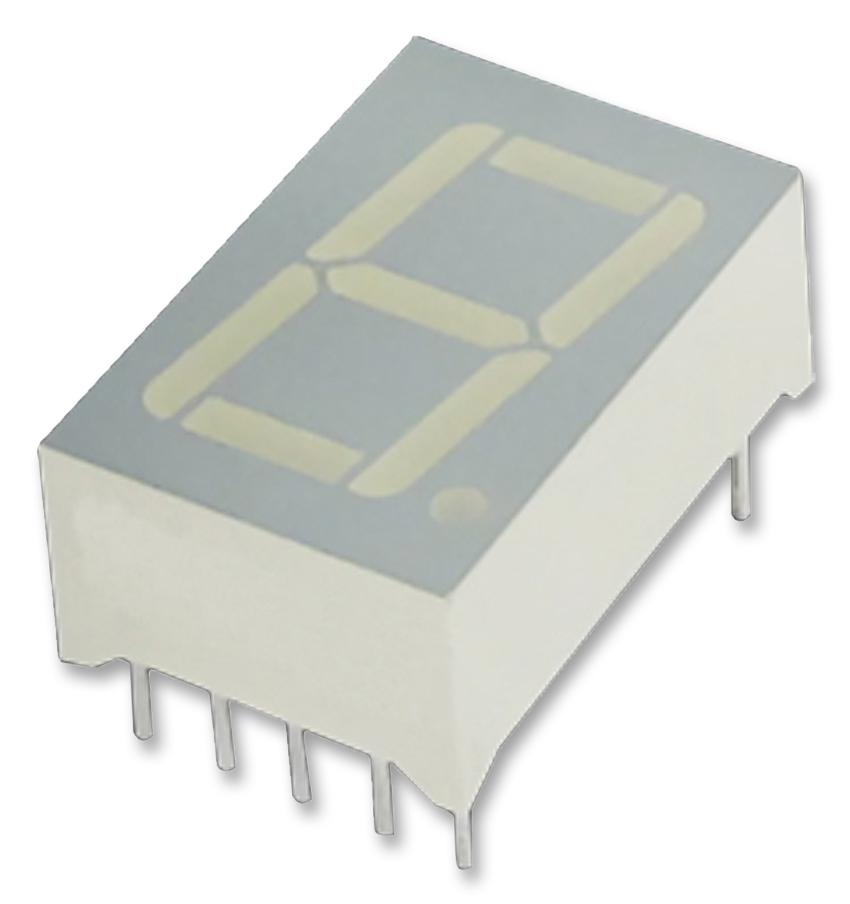

The SA56-11SURKWA is a 14.22mm single-digit numeric display featuring a white diffused lens. It uses a hyper red AlGaInP LED on a GaAs substrate, offering high visibility. The display has a character height of 0.56 inches, operates at low current, and provides excellent character appearance. It is easy to mount on PC boards or sockets, is mechanically rugged, and features a grey face with white segments. Its applications include clocks, timing, imaging, video, and vision systems. This device is RoHS compliant and designed for reliable, long-lasting performance in various electronic projects.
KINGBRIGHT SA5611SURKWA Numeric Display Specifications:
- Digit Height: 0.56 inch
- Wavelength: 645 nm at 20mA
- Forward Voltage: 1.95 V at 20mA
- Peak Wavelength: 645 nm
- Dominant Wavelength: 630 nm
- Spectral Line Half-width: 28 nm
- Capacitance: 35 pF
- Reverse Current: 10 µA at 5V
- Power Dissipation: 75 mW
- DC Forward Current: 30 mA
- Peak Forward Current: 185 mA
- Reverse Voltage: 5 V
- Operating Temperature: -40°C to +85°C
- Solder Temperature: 260°C for 3-5 seconds
- RoHS Compliant
Buy the Buy Kingbright Hyper Red Numeric Display Part Number SA56-11SURKWA Online
Order the Kingbright SA56-11SURKWA code now for a high-quality 14.22mm hyper red single-digit display. Designed with a white diffused lens, low current operation, and rugged construction, this display is suitable for clocks, timers, and control systems. Its easy mounting on PC boards and sockets simplifies integration into your electronics projects. With excellent character clarity, RoHS compliance, and reliable performance, this device ensures precise and durable visual indication, making it a perfect choice for professional or hobbyist applications seeking dependable display solutions.
Get Kingbright SA56-11SURKWA today—powered for bright, reliable displays with easy mounting and low current consumption.
Frequently Asked Questions
Where can I buy KINGBRIGHT SA5611SURKWA?
You can click on the BUY or RFQ button to purchase SA5611SURKWA from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part SA5611SURKWA?
You can download the SA5611SURKWA datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of SA5611SURKWA?
KINGBRIGHT
