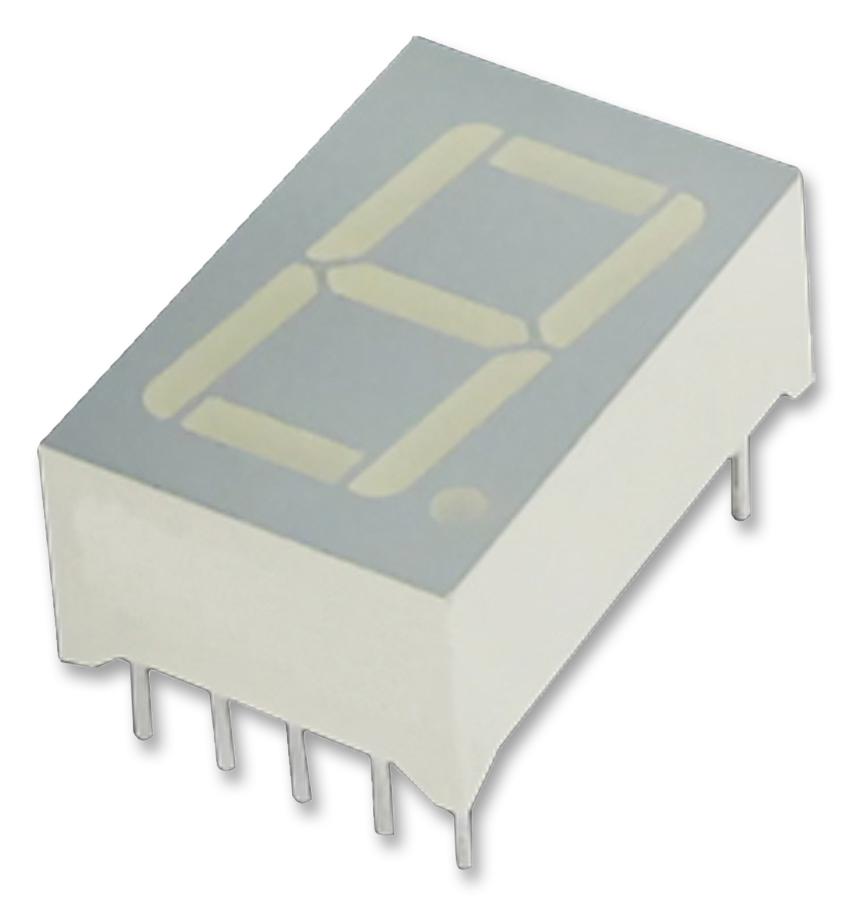

KINGBRIGHT SC5611SURKWA Numeric Display
The SC56-11SURKWA is a 14.2mm high single-digit numeric display with a white diffused lens, featuring a high-brightness red LED made with AlGaInP technology on GaAs substrate. It operates at low current, providing excellent character appearance and easy mounting on PCBs or sockets. Mechanically rugged, it has a 0.56-inch digit height, and a grey face with white segments. Designed as a common cathode configuration with the decimal point on the right, it suits clocks, timers, and industrial equipment. Delivery times vary due to market demand, and this product is not eligible for discounts.
KINGBRIGHT SC5611SURKWA Numeric Display Specifications:
- Digit Height: 0.56 inches
- Color: Hyper Red
- Lens: Diffused white
- Configuration: Common Cathode
- Operating Current: Low current operation
- Technology: AlGaInP LED on GaAs substrate
- Size: 14.2mm high
- Mounting: Easy on PCBs or sockets
- Durability: Mechanical ruggedness
- Face Color: Grey with white segments
- Wavelength: 650nm typical, 645nm max
- Forward Voltage: 1.95V typical, 2.1V max at 20mA
- Operating Temperature Range: -40°C to +85°C
- Soldering Temperature: 260°C for 3-5 seconds
- Certification: RoHS compliant
Buy the Buy Kingbright Numeric Display Part Number SC56-11SURKWA Online
Order the Kingbright SC56-11SURKWA today for high-brightness red display with 14.2mm digit height. This durable, easy-to-mount numeric display features a diffused lens and is perfect for clocks, timers, and industrial control systems. Designed with low current operation for extended longevity and excellent character appearance, it ensures reliable performance in various environments. Fast shipping available, ensuring you get this rugged, first-rate component delivered quickly for your project or upgrade needs.
Get Kingbright SC56-11SURKWA today—built for clarity and long-lasting durability in industrial and timing applications.
