KINGBRIGHT TC0711SURKWA Dot Matrix Display

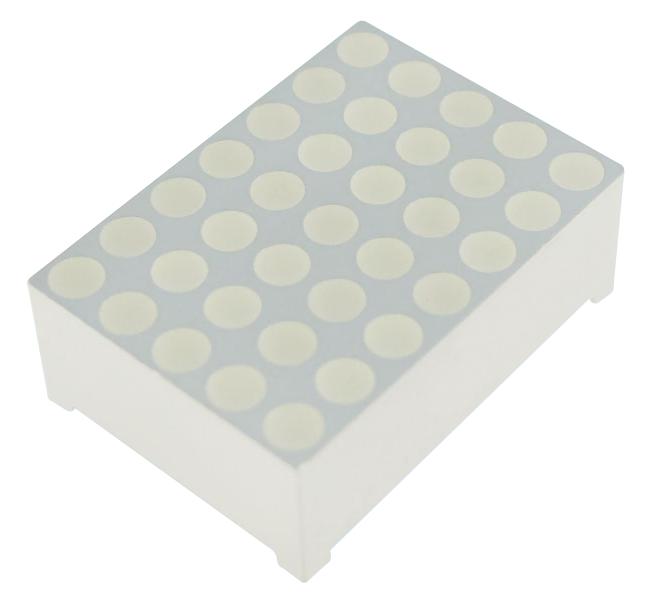

The TC07-11SURKWA is a 0.7-inch single-color dot matrix display featuring an 18mm character height and white diffused lens. It uses a hyper red AlGaInP light-emitting diode on a GaAs substrate. The display has a 2mm dot size, operates at low current, and is designed for easy mounting on printed circuit boards or sockets. It is mechanically robust and can be stacked both vertically and horizontally for flexible configurations. The device has a gray face with white segments and is equipped with a common cathode configuration. Suitable for industrial, imaging, video, and vision applications.
KINGBRIGHT TC0711SURKWA Dot Matrix Display Specifications:
- Character height: 18mm
- Dot size: 2mm
- Package dimensions: 17.78mm (0.7 inch)
- Lens type: Diffused white
- Device type: AlGaInP hyper red LED on GaAs substrate
- Forward voltage: 1.95V at 20mA
- Peak wavelength: 650nm
- Operating temperature: -40°C to +85°C
- Power dissipation: 75mW
- Maximum current: 30mA
- Reverse voltage: 5V
- Soldering temperature: 260°C for 3-5 seconds
- RoHS compliant
- Mounting method: Through-hole
- Lead forming: Not to be bent by hand, use proper tools
Buy the Buy Kingbright Dot Matrix Display Part Number TC0711SURKWA Online
Purchase the Kingbright TC07-11SURKWA dot matrix display online to benefit from its compact 0.7-inch size, high-quality white diffused lens, and low current operation. Perfect for industrial, imaging, and video devices, this tough, easily mountable display ensures flexibility with stacking options. Its robust design and RoHS compliance make it suitable for demanding environments. Buy online now for fast delivery and excellent performance, and elevate your display solutions with this reliable, versatile component tailored for professional applications.
Buy Kingbright TC0711SURKWA now and experience reliable low-current operation with easy mounting for industrial and imaging applications.
Frequently Asked Questions
Where can I buy KINGBRIGHT TC0711SURKWA?
You can click on the BUY or RFQ button to purchase TC0711SURKWA from an authorized KINGBRIGHT distributor.
How do I troubleshoot issues or seek technical support for part TC0711SURKWA?
You can download the TC0711SURKWA datasheet or visit the KINGBRIGHT website for support.
Who is the manufacturer of TC0711SURKWA?
KINGBRIGHT
