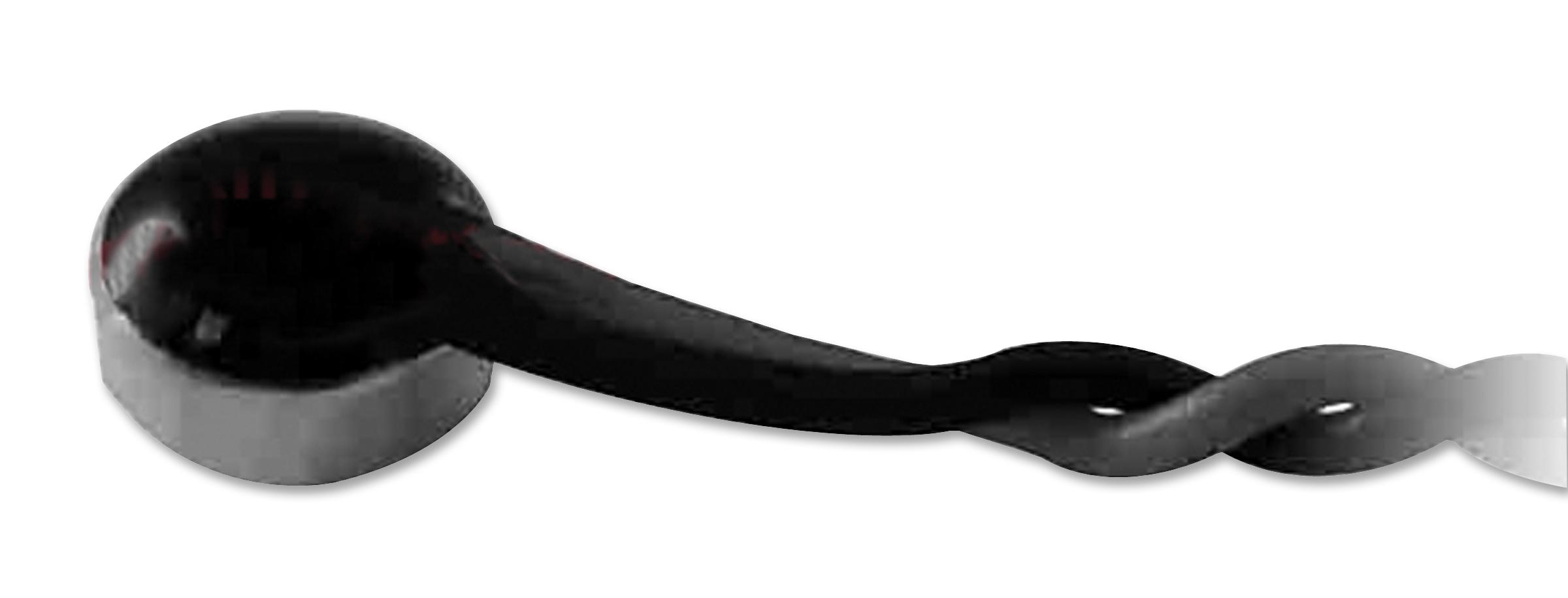

KINGSTATE KEEG1538WB100LB Electret Microphone
The KEEG1538WB-100LB is an omnidirectional electret condenser microphone featuring a sensitivity of 38 ±3 dB at 1KHz, 1Pa, with a standard operating voltage of 2V DC. Constructed from brass with gold plating, it offers a compact size of 40x15 mm and weighs only 0.10 grams. Suitable for various audio applications, it withstands temperatures from -30°C to +80°C, complies with RoHS, and has a waterproof rating of IP67, making it ideal for rugged environments and professional audio systems.
KINGSTATE KEEG1538WB100LB Electret Microphone Specifications:
- Directivity: Omnidirectional
- Sensitivity: 38 ±3 dB at 1KHz, 1Pa
- Standard Operating Voltage: 2 V DC
- Output Impedance: 2.2 KΩ at 1KHz, 1Pa
- Max Operating Voltage: 10 V DC
- Frequency Response: 20Hz to 20KHz
- Current Consumption: 0.5 mA at 2V DC
- Material: Brass with Gold Plating
- Dimensions: 40x15 mm
- Weight: 0.10 grams
- Temperature Range: -30°C to +80°C
- Environmental Protection: IP67, RoHS Compliant
- Certifications: IEC 529, RoHS
Buy the Buy Kingstate Electret Condenser Microphone Part Number KEEG1538WB-100LB Online
Purchase the Kingstate KEEG1538WB-100LB electret condenser microphone online today. This precise, omnidirectional microphone is designed for rugged environments with waterproof IP67 rating, ideal for professional audio and industrial applications. Compact and lightweight at just 0.10 grams, it features a sensitivity of 38 ±3 dB, operates at 2V DC, and covers a wide frequency range of 20Hz to 20KHz. Buy now and ensure high-quality sound capture in any demanding setting with fast, reliable delivery.
Order your Kingstate Series KEEG1538WB-100LB omnidirectional microphone today and enhance your audio projects with dependable waterproof protection and excellent sensitivity.
Frequently Asked Questions
Where can I buy KINGSTATE KEEG1538WB100LB?
You can click on the BUY or RFQ button to purchase KEEG1538WB100LB from an authorized KINGSTATE distributor.
How do I troubleshoot issues or seek technical support for part KEEG1538WB100LB?
You can download the KEEG1538WB100LB datasheet or visit the KINGSTATE website for support.
Who is the manufacturer of KEEG1538WB100LB?
KINGSTATE
