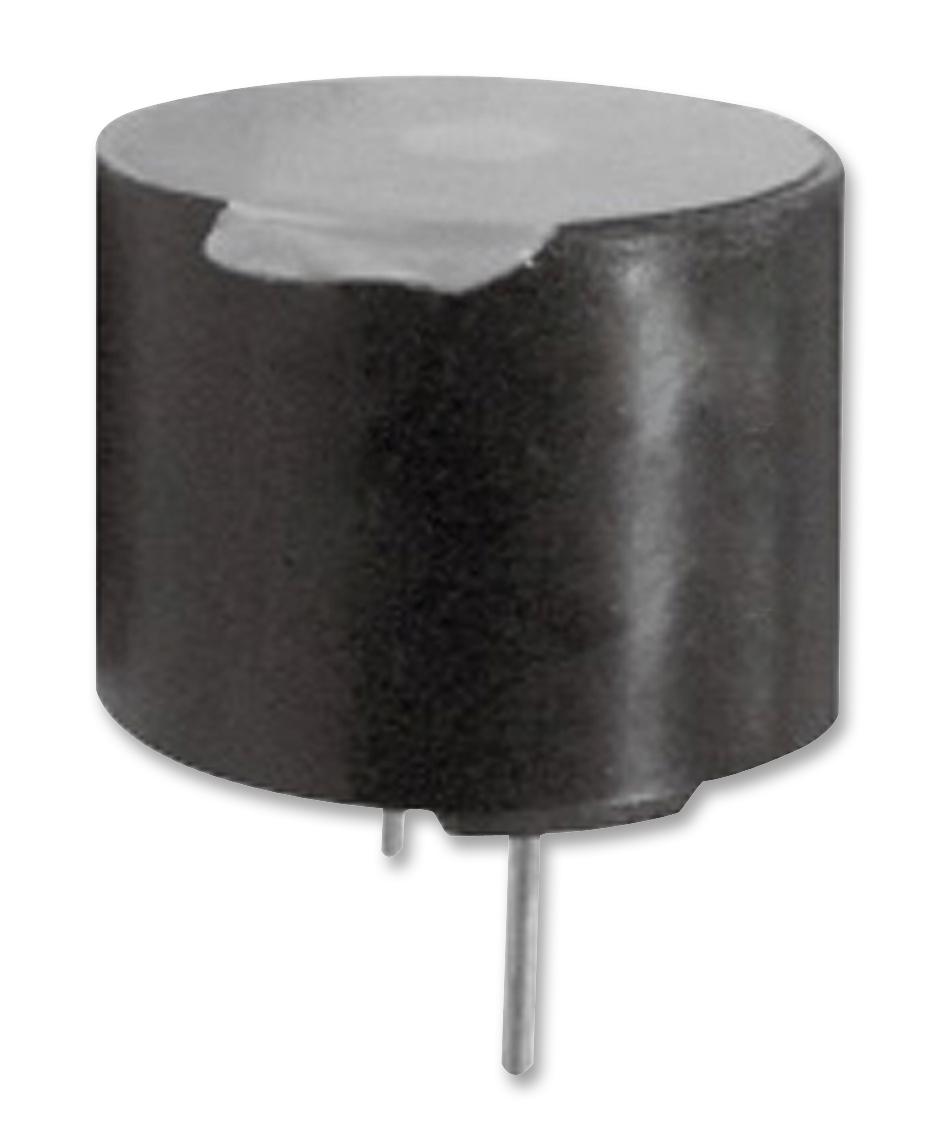

KINGSTATE KXG1205 Magnetic Buzzer
The KXG1205 is a magnetic buzzer designed for reliable sound emission with a rated voltage of 5.0V and a frequency of 2400Hz. Constructed from black PBT material, it measures 12.0 mm in diameter and weighs 1.60 grams. Its operating temperature ranges from -40°C to +70°C, and it features RoHS compliance. The buzzer produces a minimum sound output of 85 dBA at 2400Hz with a maximum current of 45 mA, suitable for various electronic and industrial alerting applications, ensuring durability and consistent performance under different environmental conditions.
KINGSTATE KXG1205 Magnetic Buzzer Specifications:
- Rated Voltage: 5.0V
- Operating Voltage: 3.0~8.0V
- Sound Output: Min.85 dBA at 2400Hz, square wave, 1/2 duty
- Coil Resistance: 47.0 + 7.0 ohms
- Rated Frequency: 2400Hz
- Temperature Range: -40°C to +70°C
- Storage Temperature: -40°C to +85°C
- Dimensions: Diameter 12.0 mm, see drawing
- Weight: 1.60 grams
- Material: PBT (Black)
- Terminal Pin Type: See attached drawing
- Protection Regulation: RoHS
- Environmental Resistance: Vibration, drop, and thermal shock tested
Buy the Kingstate Series KXG1205 Magnetic Buzzer: KXG1205
Purchase the Kingstate KXG1205 magnetic buzzer online today and enjoy quick delivery. This compact, reliable buzzer operates at 5V, producing a loud 85 dBA sound at 2400Hz, perfect for industrial and electronic alert systems. Made from durable PBT material, it withstands extreme temperatures from -40°C to +70°C, ensuring performance in harsh environments. With RoHS compliance, it meets environmental standards. Its small size, low power draw, and proven performance make it an ideal choice for various applications. Order now for fast, seamless online shopping experience.
Buy Kingstate KXG1205 magnetic buzzer now and experience unmatched reliability and performance with its durable design and clear alert sound.
Frequently Asked Questions
Where can I buy KINGSTATE KXG1205?
You can click on the BUY or RFQ button to purchase KXG1205 from an authorized KINGSTATE distributor.
How do I troubleshoot issues or seek technical support for part KXG1205?
You can download the KXG1205 datasheet or visit the KINGSTATE website for support.
Who is the manufacturer of KXG1205?
KINGSTATE
