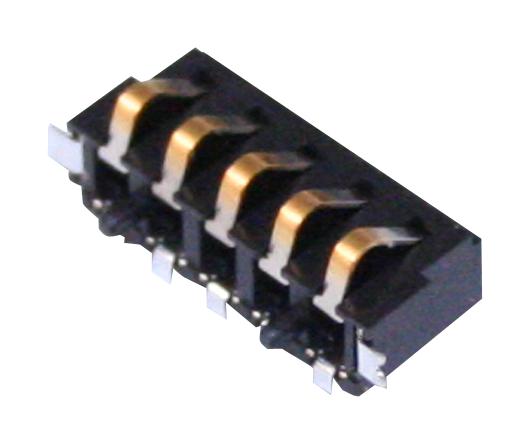

KYOCERA AVX 009155003541006 Right Angle Battery Connector
The KYOCERA AVX 009155003541006 right-angle battery connector is designed for space-constrained applications such as mobile phones and digital music players. Its compact profile minimizes its footprint while maintaining functional stability with a contact point 2.20mm above the PCB. The connector features a stamped contact design allowing for a low insulator height and utilizes beryllium copper for enhanced contact performance. It offers a 3 amp current rating, selective gold plating for 5000 mating cycles, and is RoHS compliant, making it a reliable and versatile solution for battery power applications.
KYOCERA AVX 009155003541006 Right Angle Battery Connector Specifications:
- Current Rating: 3 Amp / Contact
- Voltage Rating: 125 VAC
- Operating Temperature: -40ºC to +125ºC
- Insulator Material: Glass-Filled Nylon 46; UL94 HB
- Contact Material: Beryllium Copper
- Plating: Gold over Nickel
- Durability: 5000 Cycles
- Contact Force: 140 Grams at 1.50 Deflection
- Conplanarity: 0.10MM Maximum
- Connector Type: Right Angle
- Pitch: 2.5mm
- Number of Ways: 2-5
- RoHS Compliant: Yes
Buy the 009155003541006 KYOCERA AVX Right Angle Battery Connector | myMectronic
Securely purchase the KYOCERA AVX 009155003541006 right-angle battery connector and ensure reliable power delivery for your devices.
Buy Now
Frequently Asked Questions
Where can I buy KYOCERA AVX 009155003541006?
You can click on the BUY or RFQ button to purchase 009155003541006 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 009155003541006?
You can download the 009155003541006 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 009155003541006?
KYOCERA AVX
