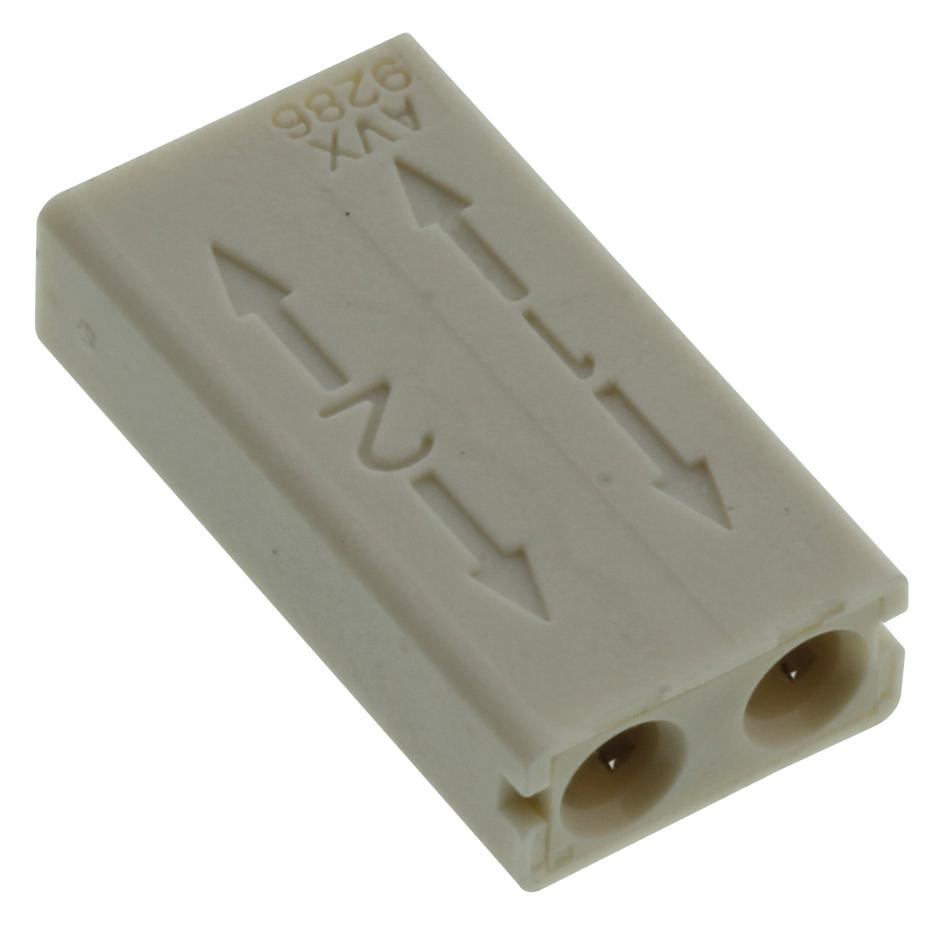

KYOCERA AVX 009286002203906 Thru Wire Connector
The KYOCERA AVX 9286 series thru-wire connectors are designed to provide a reliable and efficient connection for industrial applications. These connectors expand upon the proven poke-home discrete wire-to-wire family, offering a smaller package size and eliminating the need for push-button activation thanks to an active stainless steel spring contact. They accept a broad range of solid and stranded wire gauges, making them versatile for field installations in machine controls, commercial buildings, smart grids, and SSL/LED fixtures. The simple strip and poke-home wire insertion and twist-and-pull wire extraction design simplifies the connection process.
KYOCERA AVX 009286002203906 Thru Wire Connector Specifications:
- Wire Gauge: 18-24 AWG
- Insulation Diameter: Up to 2.10mm
- Contact Material (Fixed): Tin Plated Copper Alloy
- Contact Material (Flexing): Stainless Steel
- Insulator Material: Glass-Filled Nylon 46; UL94V0
- Voltage Rating: 300 VAC
- Durability: 3 Cycles
- Wire Trim Length: 4.00 ± 0.50 (up to 2.10mm diameter)
- Wire Trim Length (Above 2.10mm): 7.00 ± 0.50
Buy the 009286002203906 KYOCERA AVX Thru Wire Connector | myMectronic
Securely purchase the KYOCERA AVX 009286002203906 thru-wire connector and ensure reliable connections for your industrial applications.
Buy Now
Frequently Asked Questions
Where can I buy KYOCERA AVX 009286002203906?
You can click on the BUY or RFQ button to purchase 009286002203906 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 009286002203906?
You can download the 009286002203906 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 009286002203906?
KYOCERA AVX
