KYOCERA AVX 06031U220GAT2A RF/Microwave Capacitors
The ultra low ESR U Series COG NPO chip capacitors are designed for high-performance applications in communications and electronics, offering excellent uniformity and stability. Available in sizes 0402, 0603, 0805, and 1210, these RoHS-compliant capacitors feature low ESR, high reliability, and tailored electrical characteristics, including a capacitance range of 0.2 pF to 1000 pF depending on size. They are suitable for demanding radio frequency and microwave circuits, with a working voltage up to 200V and temperature tolerance of ±30 ppm/°C from -55°C to +125°C.
KYOCERA AVX 06031U220GAT2A RF/Microwave Capacitors Specifications:
- Sizes available: 0402 (1.0020.1 mm), 0603 (1.5220.25 mm), 0805 (2.0130.2 mm), 1210 (3.20.2 mm)
- Capacitance range: 0.2 pF to 30 pF (0402), 1.0 pF to 100 pF (0603), 1.6 pF to 160 pF (0805), 2.4 pF to 1000 pF (1210)
- Dielectric: COG (NPO)
- RoHS compliant
- Dielectric working voltage: 250% of rated WVDC, up to 200V
- Equivalent Series Resistance (ESR): Size dependent, typical at 1 MHz
- Temperature coefficient: 0+30 ppm/°C, operating from -55°C to +125°C
- Insulation resistance: 10^9 Ω min. @ 25°C, 10^8 Ω min. @ 125°C
- Marking: Laser marking (except 0603), capacitance code and tolerance available upon request
- Mil-spec: Meets or exceeds MIL-C-55681, with voltages up to 200V WDC for larger sizes

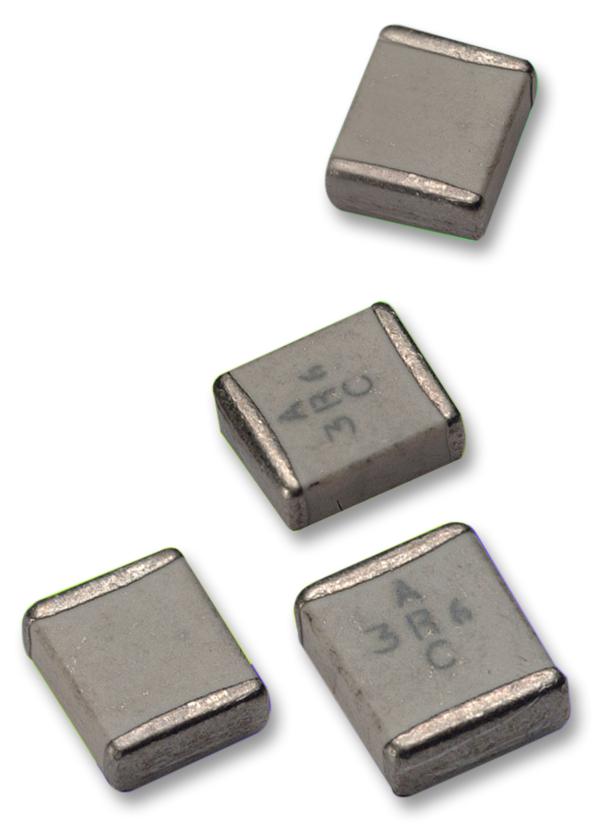

Buy the RoHS Series U Ultra Low ESR COG NPO Capacitors: 0603
Discover our ultra low ESR COG NPO chip capacitors in sizes 0402, 0603, 0805, and 1210, designed for high-frequency applications. These RoHS-compliant parts offer exceptional stability, uniformity, and reliability, with capacitance from 0.2 pF to 1000 pF and voltages up to 200V. Perfect for communication systems, RF circuitry, and microwave circuits, they meet demanding specifications for temperature stability and low ESR. Purchase online now for fast delivery and trusted performance in your electronic designs.
Order your RoHS Series U Ultra Low ESR COG NPO Capacitors today and enhance your RF and microwave projects with reliable, high-performance components.
Frequently Asked Questions
Where can I buy KYOCERA AVX 06031U220GAT2A?
You can click on the BUY or RFQ button to purchase 06031U220GAT2A from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 06031U220GAT2A?
You can download the 06031U220GAT2A datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 06031U220GAT2A?
KYOCERA AVX
