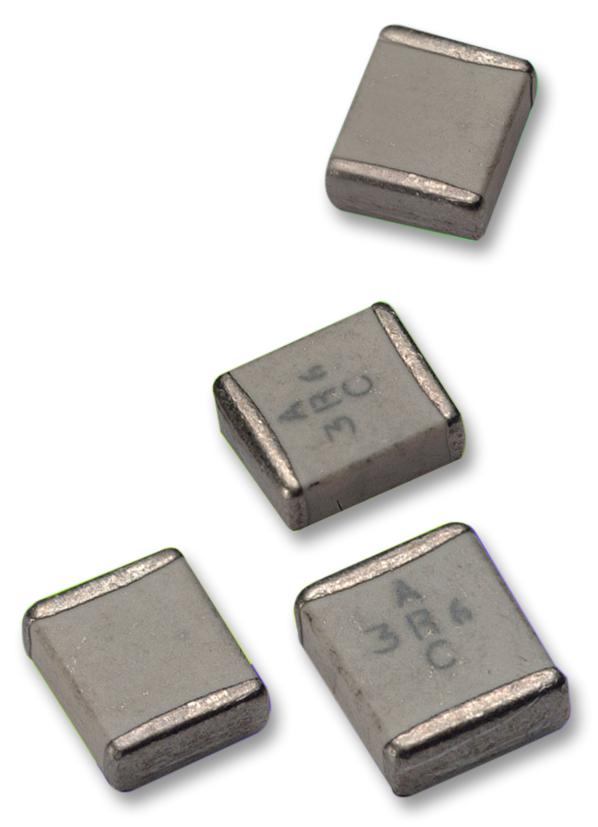

KYOCERA AVX 06032U5R6CAT2A Ultra Low ESR Chip Capacitor
The 06032U5R6CAT2A is an ultra low ESR COG (NPO) chip capacitor from the “U” Series, designed for high-frequency applications in communications. Available in sizes 0402, 0603, 0805, and 1210, it offers excellent performance with capacitance values from 1.0 pF to 100 pF. This RoHS-compliant capacitor features low ESR, high insulation resistance, and a working voltage of up to 200 V, making it suitable for RF and microwave circuits requiring precise capacitance and low losses in compact formats.
KYOCERA AVX 06032U5R6CAT2A Ultra Low ESR Chip Capacitor Specifications:
- Sizes available: 0402, 0603, 0805, 1210
- Capacitance: 1.0 pF to 100 pF @ 1 MHz
- Dielectric: COG (NPO)
- RoHS compliant
- Working Voltage: up to 200 V (WDC)
- Insulation Resistance: 10 GΩ at 25°C, rated WVDC
- Temperature Coefficient: 0+30 ppm/°C
- Temperature Range: -55°C to +125°C
- Effective Series Resistance (ESR): as low as 1.6 Ω at 1 MHz
- Dimensions (approximate): 0603 - 1.52 x 0.76 mm, 0805 - 2.01 x 0.91 mm, 1210 - 3.20 x 1.02 mm
- Dielectric Working Voltage: 250% of rated WVDC
- Certification: RoHS compliant, MIL standards met or exceeded
Buy the HT Series 06032U5R6CAT2A Ultr Low ESR Capacitors
Buy the HT Series 06032U5R6CAT2A ultra low ESR chip capacitor online today to ensure your RF and microwave applications operate at peak efficiency. Designed for high-frequency circuits, this RoHS-compliant capacitor offers excellent stability, low ESR, and high insulation resistance across a wide temperature range. Its compact size and reliable performance make it ideal for communications, aerospace, and advanced electronics. Secure your order now to benefit from fast delivery and consistent quality for your critical projects.
Order your HT Series 06032U5R6CAT2A ultra low ESR chip capacitor today and enhance your high-frequency circuit performance with dependable, RoHS-compliant components.
Frequently Asked Questions
Where can I buy KYOCERA AVX 06032U5R6CAT2A?
You can click on the BUY or RFQ button to purchase 06032U5R6CAT2A from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 06032U5R6CAT2A?
You can download the 06032U5R6CAT2A datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 06032U5R6CAT2A?
KYOCERA AVX
