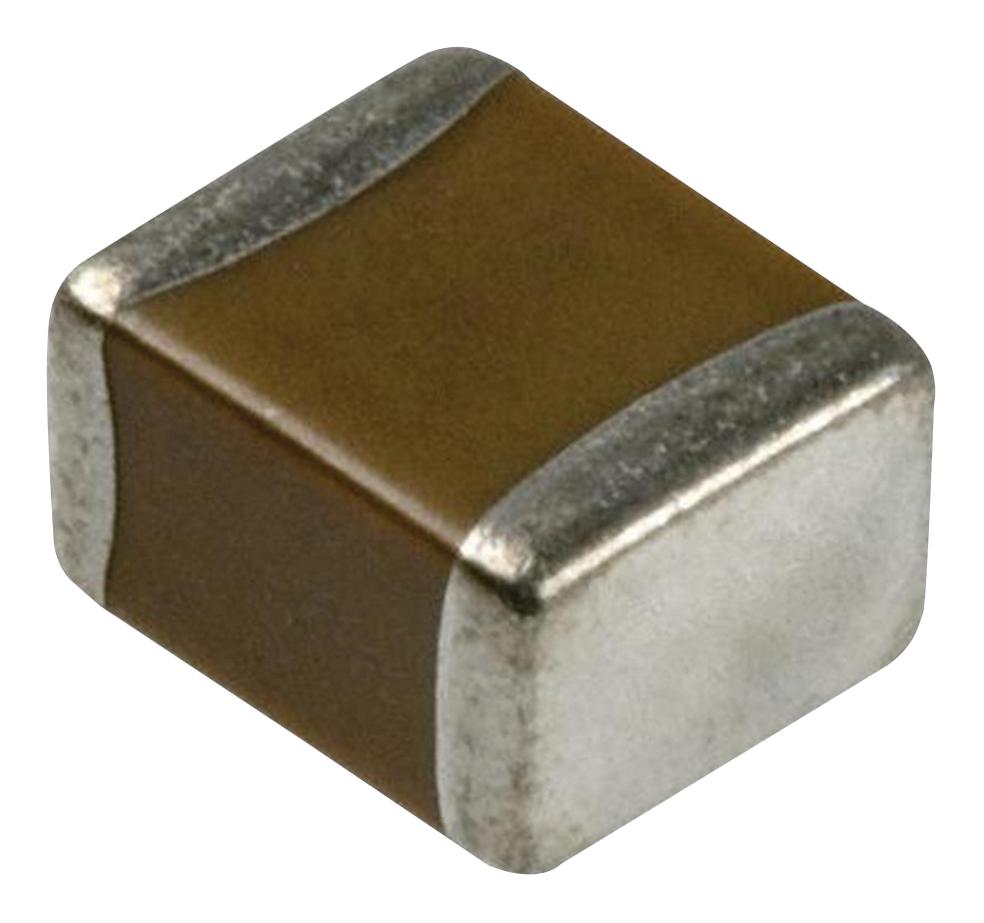

KYOCERA AVX 0805AC102KAT2A High Voltage Ceramic Capacitors
The AVX high voltage multilayer ceramic chip capacitors (MLCC) with X7R dielectric are designed for high voltage applications ranging from 600V to 5000V. They offer high capacitance values in a small form factor with low leakage and excellent EMI filtering capabilities. Suitable for use in snubbers, high-frequency power converters, resonators in switch-mode power supplies (SMPS), and high voltage coupling or DC blocking, these capacitors exhibit low equivalent series resistance (ESR) at high frequencies. They are available in various case sizes, from 10pF to 0.82µF, with rated voltages up to 5000VDC. The devices feature Tolerance options of ±10%, ±20%, or +80%/-20%, and are plated with nickel/tin or palladium/silver. Operating temperature range is from -55°C to 125°C, with a capacitance characteristic of ±15% at 0VDC.
KYOCERA AVX 0805AC102KAT2A High Voltage Ceramic Capacitors Specifications:
- Case Sizes: 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225, 3640
- Capacitance Range: 10 pF to 0.82 µF
- Voltage Rating: 600V to 5000V
- Dielectric: X7R
- Tolerance: ±10%, ±20%, +80%/-20%
- Temperature Range: -55°C to +125°C
- ESR: Low at high frequencies
- Soldering: Reflow only for sizes 1210 and larger
- Terminal Material: Nickel/tin or palladium/silver plated
- Max Thickness: 0.110 inches for larger sizes
Buy the AVX Series High Voltage Capacitors: 0805AC102KAT2A
Purchase AVX high voltage multilayer ceramic chip capacitors online to ensure reliable high-voltage performance. Designed for applications from 600V to 5000V, these small, low-leakage capacitors provide excellent EMI filtering and low ESR at high frequencies. Ideal for snubbers, resonators in SMPS, and DC blocking with various case sizes and rated voltages, they are suitable for demanding industrial and high-power projects. Order now for fast delivery and high-quality performance you can trust in your high-voltage systems.
Get AVX high voltage ceramic chip capacitors today—built for precision, durability, and exceptional performance in high-voltage circuits.
Frequently Asked Questions
Where can I buy KYOCERA AVX 0805AC102KAT2A?
You can click on the BUY or RFQ button to purchase 0805AC102KAT2A from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 0805AC102KAT2A?
You can download the 0805AC102KAT2A datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 0805AC102KAT2A?
KYOCERA AVX
