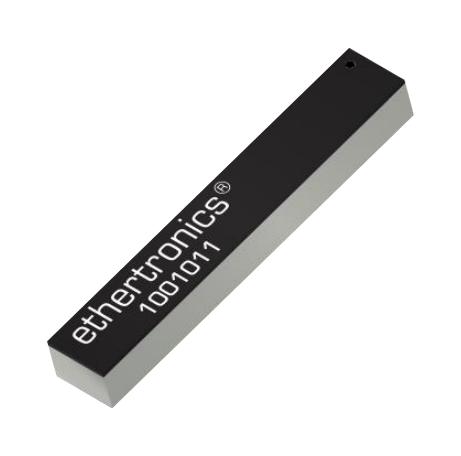

KYOCERA AVX 1001011 GNSS or ISM FR4 Antenna
The KYOCERA AVX 1001011 GNSS or ISM FR4 antenna leverages patented Isolated Magnetic Dipole (IMD) technology for exceptional performance and flexibility. Unlike traditional antennas, the IMD design minimizes interaction with surrounding components, simplifying layout and ensuring consistent performance. This antenna supports a broad spectrum of applications, including tracking, smart home automation, agriculture, automotive systems, healthcare devices, digital signage, wearables, and industrial equipment. It is suitable for both on-ground and off-ground environments, offering reliable connectivity and optimized performance.
KYOCERA AVX 1001011 GNSS or ISM FR4 Antenna Specifications:
- Product: GNSS or ISM FR4 Antenna
- Frequency: 1.561, 1.575, 1.603 GHz or 868-928 MHz
- Supports: Tracking, Smart Home, Agriculture, Automotive, Healthcare, Digital Signage, Wearables, Industrial Devices
- Technology: Isolated Magnetic Dipole (IMD)
- Mounting: Surface mounted to the PCB
- Weight: 0.45 grams
- Packaging: Tape & Reel
- Size_mm: 22.0 x 3.2 x 3.3
- Peak_Gain_dBi: 0.96 / 0.87 / 0.96 / 1.00
- Efficiency_percent: 72 / 47, 71 / 46, 70 / 45, 69 / 41
- Center_Frequency_GHz: 1.561, 1.575, 1.575, 1.603
- VSWR: 1.5:1 / 2.5:1
- Impedance: 50 Ω unbalanced
- Pin_1: Feed
- Pin_2: DummyPad
- Pin_3: DummyPad
- Pin_4: DummyPad
- Matching_Pi_Network_S1: 4.3pF ±0.25pF
- Matching_Pi_Network_P2: 1pF ±0.5pF
- Matching_Pi_Network_P3: 0Ω
- Antenna_Dimensions_A_mm: 22.0 ± 0.3
- Antenna_Dimensions_B_mm: 3.2 ± 0.2
- Antenna_Dimensions_C_mm: 3.3 ± 0.3
Buy the 1001011 KYOCERA AVX GNSS or ISM FR4 Antenna | myMectronic
Securely purchase the KYOCERA AVX 1001011 GNSS or ISM FR4 Antenna and experience reliable performance for your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy KYOCERA AVX 1001011?
You can click on the BUY or RFQ button to purchase 1001011 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 1001011?
You can download the 1001011 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 1001011?
KYOCERA AVX
