KYOCERA AVX 100131201 Wi-Fi/Bluetooth Ceramic Antenna
The KYOCERA AVX 1001312 is a ceramic Isolated Magnetic Dipole (IMD) antenna offering enhanced functionality and performance in compact designs. Its patented IMD technology minimizes interaction with surrounding components, resulting in consistent performance and quicker time-to-market. This antenna is suitable for a wide range of applications including cell phones, media players, automotive systems, healthcare headsets, industrial gateways, and smart grid devices. It delivers a peak gain of 1.88 dBi and an average efficiency of 62%, with a VSWR of 1.8:1 max. The antenna is RoHS compliant and packaged in tape and reel.
KYOCERA AVX 100131201 Wi-Fi/Bluetooth Ceramic Antenna Specifications:
- Frequency: 2400 – 2485 MHz
- Supports: Wi-Fi applications, Agriculture, Automotive, Bluetooth, Zigbee, WLAN, Smart Home, Healthcare, Digital Signage
- Peak Gain: 1.88 dBi
- Average Efficiency: 62%
- VSWR Match: 1.8:1 max
- Feed Point Impedance: 50 ohms unbalanced
- Polarization: Linear
- Power Handling: 0.5 Watt CW
- Size: 2.00 x 1.20 x 0.55 mm
- Mounting: SMT
- Weight: 0.003 grams
- Packaging: Tape & Reel, 1001312 – 1,000 pieces per reel

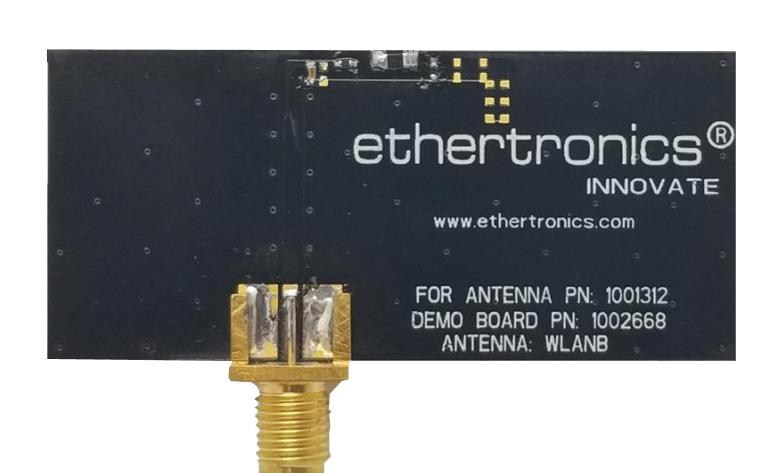

- Demo Board: 1001312-01
- Pin 1 Description: Feed
- Pin 2 Description: Ground
- Matching Pi Network P1: 4.7pF ±0.05pF
- Matching Pi Network P2: DNI
- Matching Pi Network S1: 0Ω
- Matching Pi Network R1: 0Ω
- Matching Pi Network R2-R8: DNI
Buy the 1001312 KYOCERA AVX Wi-Fi/Bluetooth Ceramic Antenna | myMectronic
Purchase the KYOCERA AVX 1001312 Wi-Fi/Bluetooth Ceramic Antenna securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy KYOCERA AVX 100131201?
You can click on the BUY or RFQ button to purchase 100131201 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 100131201?
You can download the 100131201 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 100131201?
KYOCERA AVX
