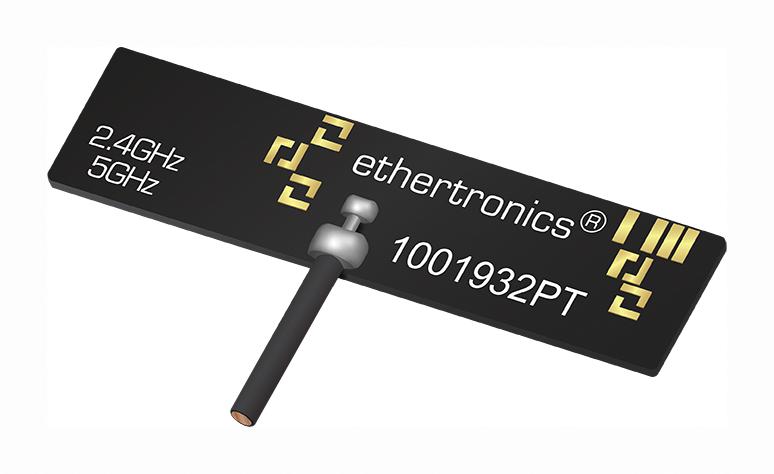

KYOCERA AVX 1001932PTAA10L0100 WiFi Tunable Embedded Antenna
The KYOCERA AVX 1001932PT is a high-performance WiFi tunable embedded PCB antenna designed for compact and efficient wireless communication. Featuring patented Isolated Magnetic Dipole (IMD) technology, this antenna delivers exceptional RF field containment, minimizing interference and maximizing performance in a variety of applications including Wi-Fi, Bluetooth, Zigbee, smart home devices, automotive systems, and industrial gateways. It supports 2.4 GHz and 5.0 GHz frequencies and is offered with standard cable lengths up to 200mm. The antenna is RoHS compliant and provides a reliable solution for device designers seeking to optimize wireless connectivity in space-constrained environments. Tuning options are available to adjust frequency range.
KYOCERA AVX 1001932PTAA10L0100 WiFi Tunable Embedded Antenna Specifications:
- Frequency: 2.400 – 2.485 GHz, 5.150 – 5.825 GHz
- Peak Gain: 2.5 dBi @ 2.4 GHz, 4.4 dBi @ 5 GHz
- Average Efficiency: 60% @ 2.4 GHz, 71% @ 5 GHz
- VSWR Match: 2.0 :1 max
- Feed Point Impedance: 50 ohms unbalanced
- Polarization: Linear
- Power Handling: 0.5 Watt CW
- Dimensions: 35.2 x 8.5 x 1.6 mm
- Weight: 0.6 grams
- Cable/Connector: Length: 100 mm, Diameter: 1.13 mm, Color: Black; u.Fl compatible connector
- Mounting: Adhesive on bottom side of antenna
- Tuning Options: Limited range RF tuning via solder bridges or trace cuts
