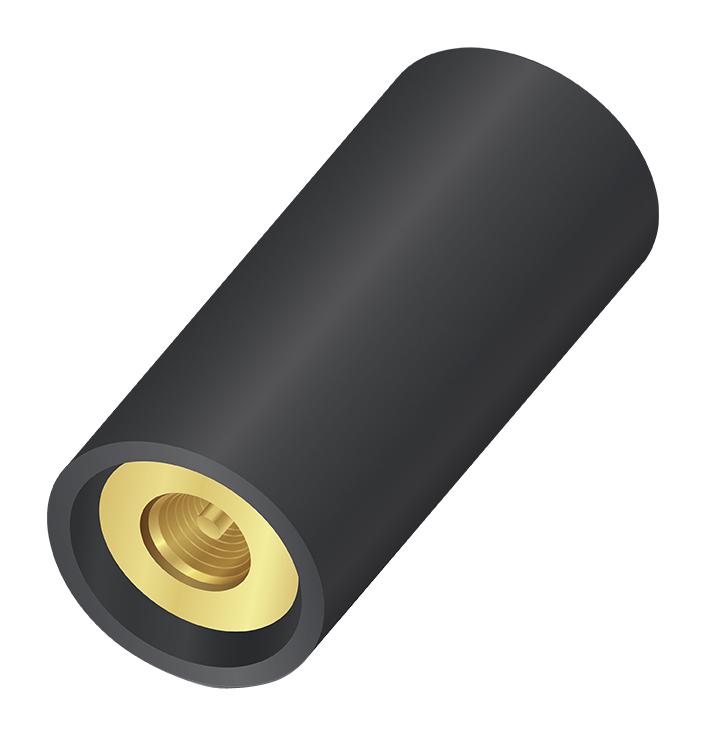

KYOCERA AVX 1002857 GPS Antenna
The EtherHelix GPS Antenna, part number 1002857, is a compact, high-performance circularly polarized antenna designed for mission-critical GPS applications across industries like aviation, automotive, and security. Featuring patented IMD technology, it ensures consistent, reliable signal reception at 1.575 GHz with a peak gain of -3.0 dBi and an axial ratio less than 1.5 dB at zenith. Its small size, IP68 UV protection, and high efficiency of 27% make it ideal for mobile devices, navigation, and industrial applications, ensuring durability in harsh environments.
KYOCERA AVX 1002857 GPS Antenna Specifications:
- Frequency: 1.575 GHz
- Polarization: Right Hand Circularly Polarized (RHCP)
- Peak Gain: -3.0 dBi
- Axial Ratio: < 1.5 dB at zenith
- Beam-width: 120 degrees
- VSWR: 2.0:1 max
- Impedance: 50 ohms unbalanced
- Power Handling: 0.5 Watt CW
- Dimensions: Height 34.93 mm, Diameter 15.0 mm
- Connector: SMA Male
- Mechanical Rating: IP68 UV Protected
- Operating Temperature: -40°C to +85°C
- Humidity: 95% RH @ 54°C
Buy the Ethertronics Series GPS Antenna: 1.575 GHz Circularly Polarized Part 1002857
Enhance your GPS systems with the Ethertronics EtherHelix GPS Antenna, part number 1002857. This compact, circularly polarized antenna delivers reliable signal reception at 1.575 GHz, with a peak gain of -3.0 dBi, axial ratio less than 1.5 dB, and high efficiency of 27%. Its IP68 UV protection and small size make it ideal for mobile, automotive, and industrial applications, ensuring what you need in rugged environments. Purchase online today for a durable, high-performance GPS solution built for mission-critical use.
Get Ethertronics 1002857 GPS Antenna today—built for precision, durability, and high performance in mission-critical GPS applications.
Frequently Asked Questions
Where can I buy KYOCERA AVX 1002857?
You can click on the BUY or RFQ button to purchase 1002857 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 1002857?
You can download the 1002857 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 1002857?
KYOCERA AVX
