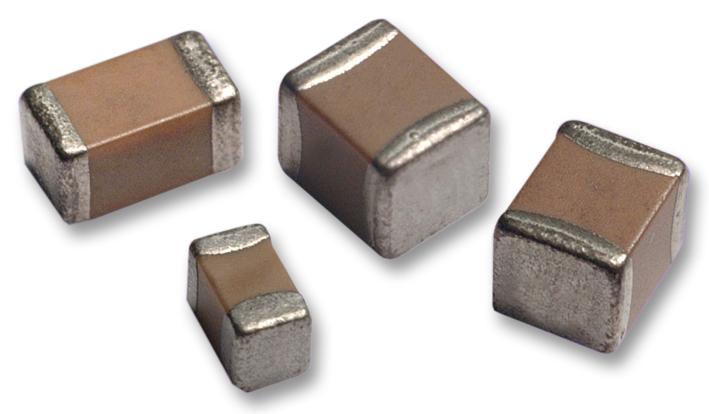

KYOCERA AVX 12067C222KAT2A Ceramic Capacitor
The 12067C222KAT2A is a high-quality X7R dielectric ceramic capacitor designed for industrial applications requiring stable capacitance across a wide temperature range. It features RoHS compliance, a compact 0805 size, and plated nickel terminations. The capacitor offers a capacitance of 2200 pF with a tolerance of ±5%. It withstands temperature variations from -55°C to +125°C, meeting strict testing standards for dielectric strength, solderability, shock, and humidity. This reliable component ensures optimal performance in demanding electronic circuits.
KYOCERA AVX 12067C222KAT2A Ceramic Capacitor Specifications:
- Size: 0805 (2.0 x 1.25 mm)
- Capacitance: 2200 pF (2.2 nF)
- Tolerance: ±5%
- Temperature Range: -55°C to +125°C
- Voltage Rating: 25V DC
- Dielectric: X7R ceramic
- RoHS Compliant
- Terminations: Plated Ni, optional gold-plated or Flexiterm®
- Leakage Current: ≤ 1.0 μA at rated voltage
- Capacitance Change: within ±15% over temperature
- Test Voltage: 150% Rated Voltage for 1 minute
- Operating Life: ≥ 1000 hours at rated voltage and temperature
- Solderability: Meets IPC/JEDEC standard with 95% coverage
- Resistance to Solder Heat: ≤47.5% leaching after reflow at 260°C
- Insulation Resistance: ≥ 10,000 MΩ at 25°C
Buy the Ceramic Capacitor Series X7R: 2200 pF Multilayer 0805: 12067C222KAT2A
Order the 12067C222KAT2A ceramic capacitor online today for your industrial and electronics projects. This X7R dielectric component offers excellent temperature stability from -55°C to +125°C. Its compact 0805 size makes it suitable for space-constrained applications, providing 2200 pF capacitance with ±5% tolerance. RoHS compliance ensures environmentally friendly manufacturing. Designed to withstand soldering, shock, and humidity, this high-reliability capacitor guarantees consistent performance, making it an ideal choice for demanding electronic circuits needing steady capacitance over wide temperature ranges.
Buy 12067C222KAT2A high-performance ceramic capacitor now and ensure reliable operation in your industrial and electronic circuits.
Frequently Asked Questions
Where can I buy KYOCERA AVX 12067C222KAT2A?
You can click on the BUY or RFQ button to purchase 12067C222KAT2A from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 12067C222KAT2A?
You can download the 12067C222KAT2A datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 12067C222KAT2A?
KYOCERA AVX
