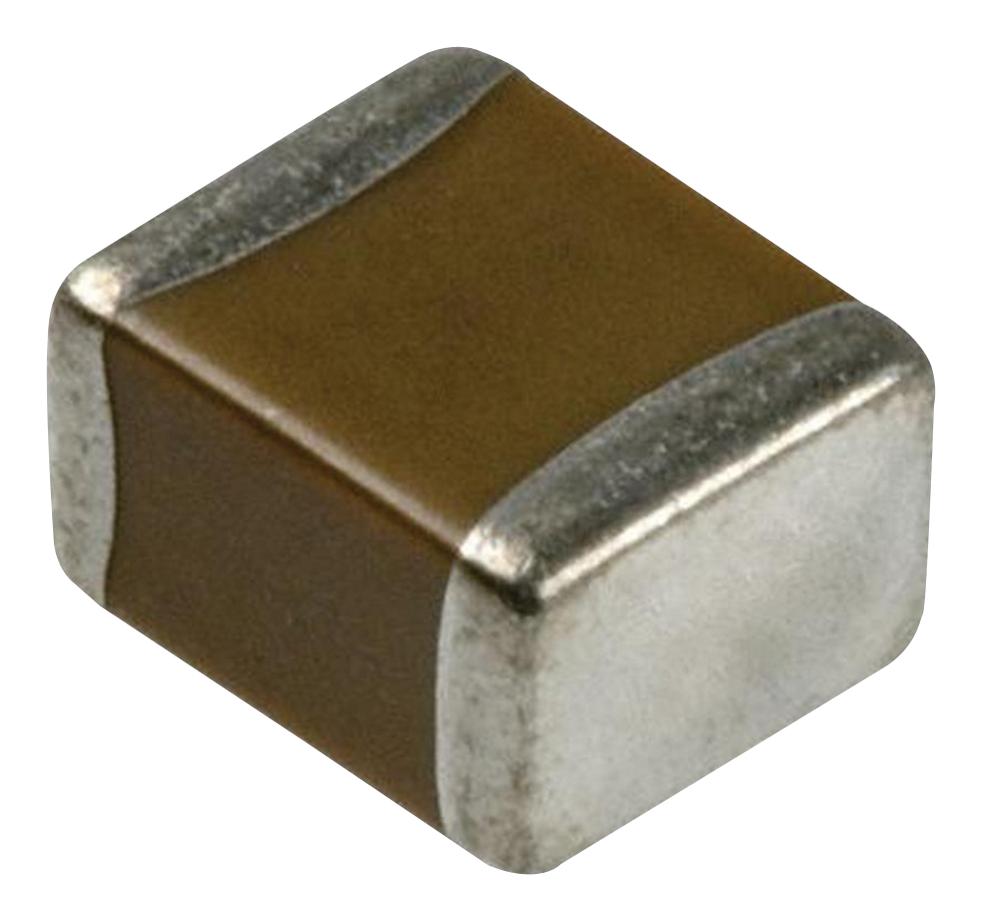

KYOCERA AVX 1808CC223KAT2A High Voltage Ceramic Capacitor
The AVX high voltage multilayer ceramic chip capacitors with X7R dielectric are designed for high voltage applications ranging from 600V to 5000V. These capacitors feature high capacitance in small case sizes, low leakage, and excellent EMI filtering capabilities. They are available in configurations such as snubbers for high-frequency power converters, resonators in switch-mode power supplies, and high voltage coupling or DC blocking applications. The capacitors exhibit low ESR at high frequencies and are constructed larger than typical chips to withstand high voltages. They are available in sizes including 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225, and 3640, with capacitance from 10pF to 0.82µF, voltage ratings up to 5000VDC, and various tolerances including ±10%, ±20%, and +80%/-20%. Terminations include nickel/tin or palladium/silver plating. Operating temperature ranges from -55°C to 125°C with a temperature coefficient of ±15% at 0VDC.
KYOCERA AVX 1808CC223KAT2A High Voltage Ceramic Capacitor Specifications:
- Capacitance Range: 10pF to 0.82µF
- Voltage Ratings: 600V to 5000VDC
- Case Sizes: 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225, 3640
- Maximum Dimensions: Length up to 40.25mm, Width up to 10.2mm, Thickness up to 3.40mm
- Operating Temperature: -55°C to +125°C
- Tolerance: ±10%, ±20%, +80%/-20%
- Dielectric Type: X7R
- Terminations: Nickel/Tin, Palladium/Silver
- Low ESR at High Frequencies
Buy the AVX 1808CC223KAT2A – Reliable High Voltage Ceramic Capacitor for Industrial Applications
Shop AVX high voltage ceramic capacitors online today and experience unmatched reliability, low ESR, and high capacitance for demanding industrial applications. These compact, durable components are perfect for power converters, resonators, and high voltage filtering in high-frequency circuits. With sizes ranging from 0805 to 3640 and voltage ratings up to 5000VDC, they provide excellent performance in a range of high voltage and high temperature environments. Purchase now for quality, efficiency, and long-lasting operation in your high voltage applications.
Get AVX 1808CC223KAT2A today—built for high voltage reliability, low leakage, and efficient filtering in critical industrial power systems.
Frequently Asked Questions
Where can I buy KYOCERA AVX 1808CC223KAT2A?
You can click on the BUY or RFQ button to purchase 1808CC223KAT2A from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 1808CC223KAT2A?
You can download the 1808CC223KAT2A datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 1808CC223KAT2A?
KYOCERA AVX
