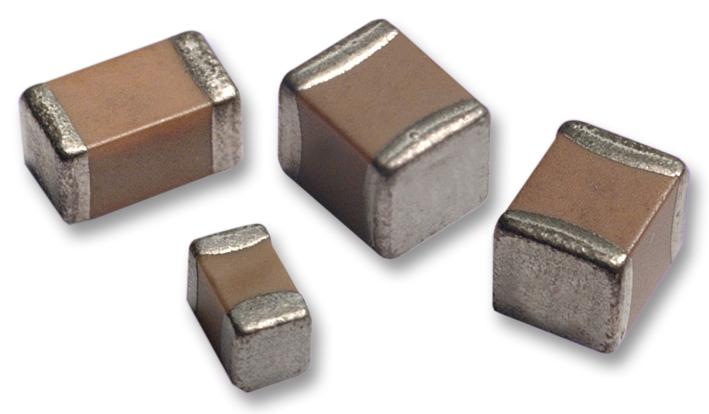

KYOCERA AVX 1808HC102KAT2A High Voltage Capacitors
High voltage MLC chip capacitors are designed for applications requiring up to 5000V, such as snubbers in high-frequency power converters and SMPS resonators. They feature low ESR at high frequencies, small sizes, and high capacitance stability. These capacitors are available in various sizes like 0805, 1206, 1825, and 2225, with dielectric options including NPO (COG) and X7R. Proper handling during surface mount assembly is essential, especially for larger sizes, which require reflow soldering and protective coatings to avoid arcing. They are suitable for high-voltage, high-frequency applications in various electronic systems.
KYOCERA AVX 1808HC102KAT2A High Voltage Capacitors Specifications:
- Size options: 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225, 3640
- Capacitance range: 10 pF to 4 μF depending on size and model
- Voltage rating: 600V/630V to 5000V for various sizes
- Dielectric types: NPO (COG), X7R
- Maximum dimensions: Length up to 40.25 mm for larger sizes, width up to 10.2 mm, thickness up to 3.4 mm
- Temperature range: -55°C to +125°C for X7R, -55°C to +125°C for NPO
- Reflow soldering recommended for sizes 1210 and larger, surface coating advisable for high voltage models
- Low ESR at high frequencies, capacitance stability, RoHS compliant
Buy the AVX 1808HC102KAT2A – Reliable High Voltage MLC Chips for Industrial Applications
Get your AVX high voltage MLC chip capacitors online today. These capacitors excel in high-voltage, high-frequency applications, offering low ESRs, small sizes, and excellent stability. Perfect for snubbers, resonators, and coupling in power converters and SMPS. Designed for reliable surface mount assembly, they require careful handling during soldering, especially for larger sizes. Order now and elevate your electronic projects with these high-performance, RoHS compliant capacitors that ensure longevity and consistent performance in demanding environments.
Order your AVX Series1808HC102KAT2A high voltage chip capacitors today and ensure your power systems deliver dependable, high-frequency performance.
Frequently Asked Questions
Where can I buy KYOCERA AVX 1808HC102KAT2A?
You can click on the BUY or RFQ button to purchase 1808HC102KAT2A from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 1808HC102KAT2A?
You can download the 1808HC102KAT2A datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 1808HC102KAT2A?
KYOCERA AVX
