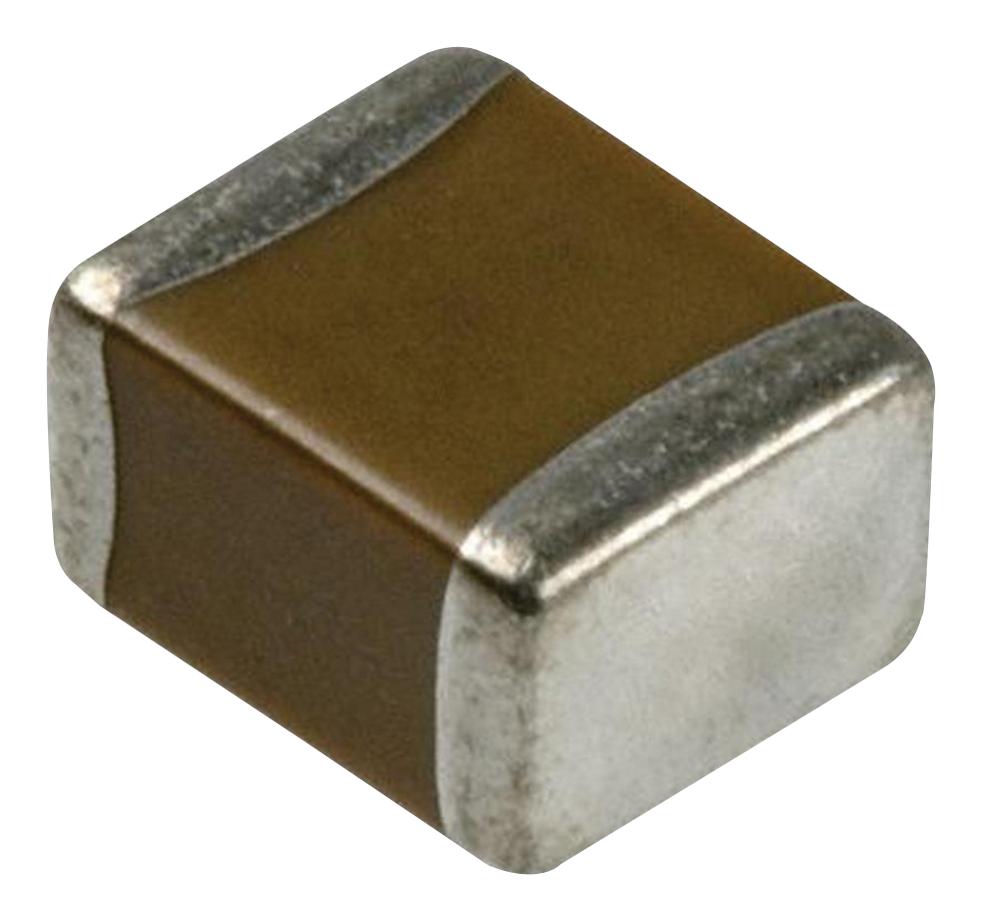

KYOCERA AVX 1812AA102JAT2A High Voltage Ceramic Capacitor

The AVX high voltage multilayer ceramic chip capacitors feature NPO (C0G) dielectric, offering high capacitance, small size, and low leakage suitable for 600V to 5000V applications. These capacitors deliver low parasitic effects and excellent EMI filtering. Designed with a multilayer structure, they provide high capacitance, various voltage ratings, and reliable performance over a wide temperature range. Ideal for use in high frequency power converters, snubbers, resonators in switch-mode power supplies (SMPS), and high voltage coupling or DC blocking. They exhibit low equivalent series resistances (ESR) at high frequencies. Larger physical dimensions are used to accommodate high voltage ratings, with capacitance values ranging from 10pF to 0.1μF. Available in numerous case sizes including 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225, and 3640, with rated voltages from 600V to 5000V DC. Capacitance tolerances are ±5%, ±10%, or ±20%. Terminations are available in nickel/tin or palladium/silver plating. Operating temperature ranges from -55°C to +125°C, with a temperature coefficient of ±30ppm/°C at 0VDC.

View 1812AA102JAT2ADatasheet [pdf]

Buy the AVX Series High Voltage MLCC: 1812AA102JAT2A

Purchase the AVX High Voltage Ceramic Capacitor 1812AA102JAT2A online today and benefit from premium high voltage filtering, low ESR, and excellent thermal stability. Designed for demanding applications up to 5000V, these capacitors provide outstanding reliability, minimal parasitic effects, and optimal performance across a wide temperature range. Their versatile sizes and robust terminations make them ideal for high frequency power converters, snubbers, and resonators. Secure your supply chain and elevate your electronics' safety and efficiency with a simple online order.

Order your AVX Series High Voltage MLCC 1812AA102JAT2A today and ensure reliable high voltage performance in your power supply and industrial electronics.
