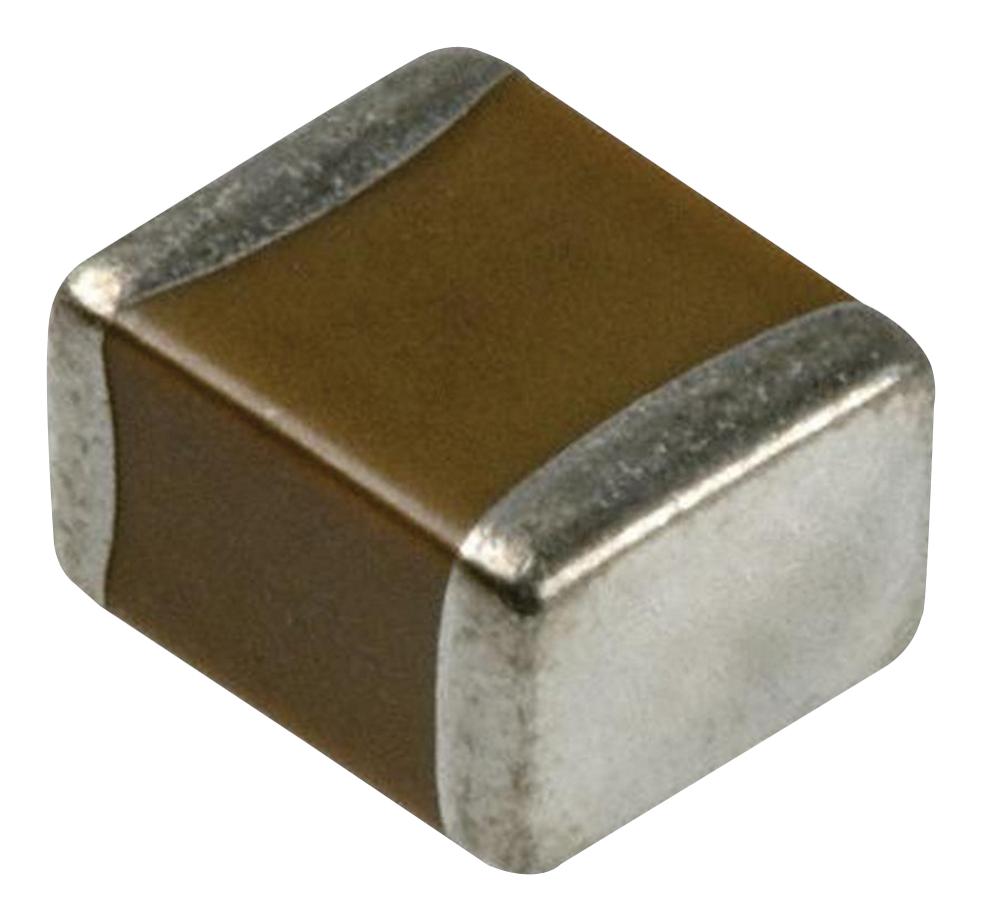

KYOCERA AVX 1812HA101JAT2A High Voltage Ceramic Capacitor
The AVX high voltage multilayer ceramic chip capacitors with NPO dielectric are designed for high voltage applications from 600V to 5000V. They feature high capacitance in small case sizes like 0805 to 3640, low leakage current, and excellent EMI filtering. These multilayer components provide high reliability, stable performance over a broad temperature range, and maintain low ESR at high frequencies. Suitable for snubbers, resonators in SMPS, and high voltage coupling or DC blocking. Available with plated terminations, they are ideal in demanding high voltage circuitry.
KYOCERA AVX 1812HA101JAT2A High Voltage Ceramic Capacitor Specifications:
- Case Sizes: 0805, 1206, 1210, 1808, 1812, 1825, 2220, 2225, 3640
- Capacitance Range: 10 pF to 0.1 μF
- Rated Voltages: 600V, 630V, 1000V, 1500V, 2000V, 2500V, 3000V, 4000V, 5000V
- Temperature Range: -55°C to +125°C
- Temperature Coefficient: ±30 ppm/°C at 0VDC
- Terminations: Nickel/tin or palladium/silver plated
- Dielectric Type: NPO (C0G)
- ESR at high frequencies: Low
- Performance Characteristics: High capacitance, low leakage current, stable over temperature and voltage
- Physical Dimensions: Vary with case size, e.g., 0805: 2.10×1.25mm, 1206: 3.30×1.60mm, 1825: 4.60×6.30mm
- Maximum Thickness: 0.032mm to 0.130mm depending on size
- Soldering: Reflow soldering recommended for larger sizes, with caution for surface applications
Buy the AVX 1812 – Reliable High Voltage Capacitors for Industrial Applications
Purchase AVX high voltage multilayer ceramic capacitors online today. Designed for demanding applications from 600V to 5000V, these capacitors deliver high capacitance, low leakage, and excellent performance stability. Perfect for snubbers, high-frequency resonators, and high voltage coupling in power supplies. Available in multiple case sizes with plated terminations, they ensure reliable operation across a wide temperature range from -55°C to 125°C. Order now to enhance your high voltage circuitry with trusted AVX quality and durability.
Get AVX high voltage multilayer ceramic capacitors today—built for precision, stability, and long-lasting durability in demanding circuits.
Frequently Asked Questions
Where can I buy KYOCERA AVX 1812HA101JAT2A?
You can click on the BUY or RFQ button to purchase 1812HA101JAT2A from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 1812HA101JAT2A?
You can download the 1812HA101JAT2A datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 1812HA101JAT2A?
KYOCERA AVX
