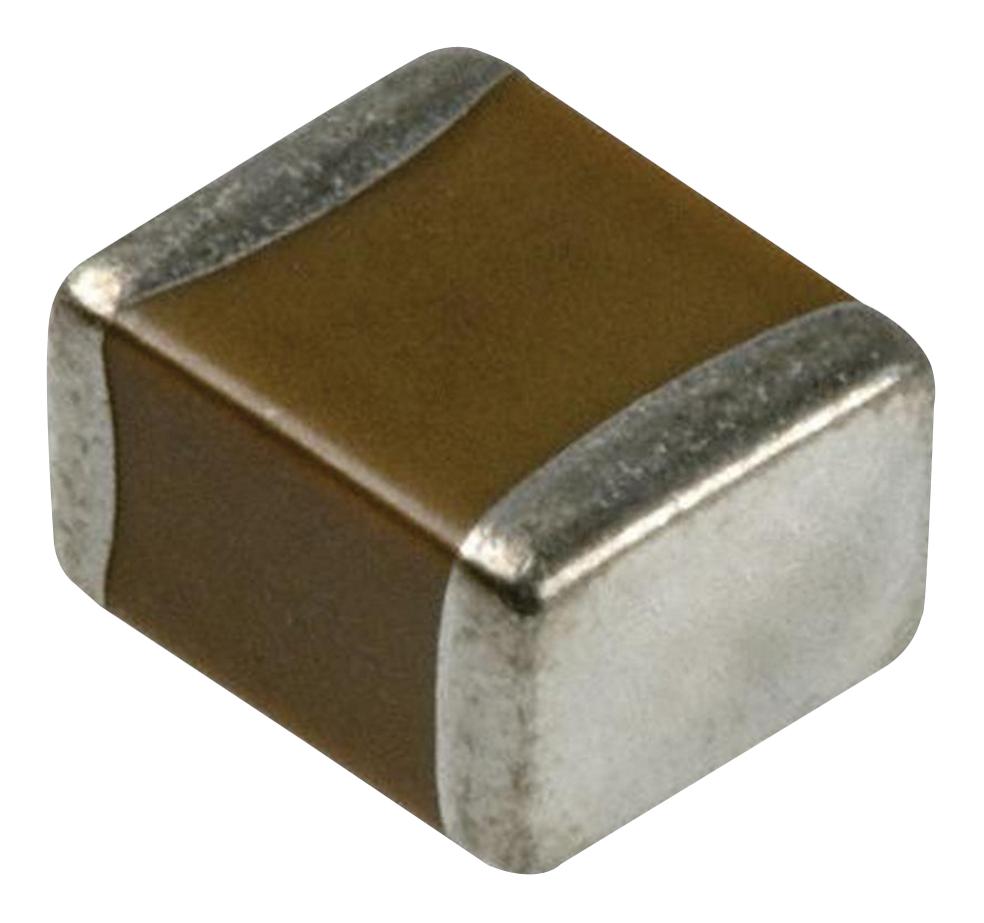

KYOCERA AVX 2225AC104KAT2A High Voltage Chip Capacitor
KYOCERA AVX's 2225AC104KAT2A is a high-voltage multilayer chip capacitor engineered for demanding applications requiring high performance and reliability. These capacitors are specifically designed to meet the challenges of high-voltage systems, exhibiting characteristics such as high value, low leakage, and a small form factor. They are commonly used in snubbers within high-frequency power converters, resonators in SMPS (Switched-Mode Power Supplies), and high-voltage coupling or DC blocking circuits. Due to their larger physical size compared to standard chip capacitors, careful attention to surface mount assembly techniques is crucial, particularly regarding temperature gradients during reflow soldering. These capacitors are RoHS compliant and offer a robust solution for a wide range of industrial applications.
KYOCERA AVX 2225AC104KAT2A High Voltage Chip Capacitor Specifications:
- Capacitance Range: 10pF to 0.100μF
- Capacitance Tolerances: ±5%, ±10%, ±20%
- Dissipation Factor: 0.1% max.
- Operating Temperature Range: -55°C to +125°C
- Temperature Characteristic: 0 ±30ppm/°C
- Voltage Ratings: 600, 630, 1000, 1500, 2000, 2500, 3000, 4000 & 5000 VDC
- Insulation Resistance: 100K MΩ min. or 1000 MΩ -μF min.
- Dielectric Strength: Minimum 120% rated voltage
- Case Size: 0805, 1206, 1210, 1808, 1812, 2220, 2225, 3640
- Length (mm): 2.10 ± 0.20 to 9.14 ± 0.25
- Width (mm): 1.25 ± 0.20 to 10.2 ± 0.25
- Thickness (mm): 1.35 to 3.40
- Terminal min: 0.50 ± 0.20 to 0.85 ± 0.35
