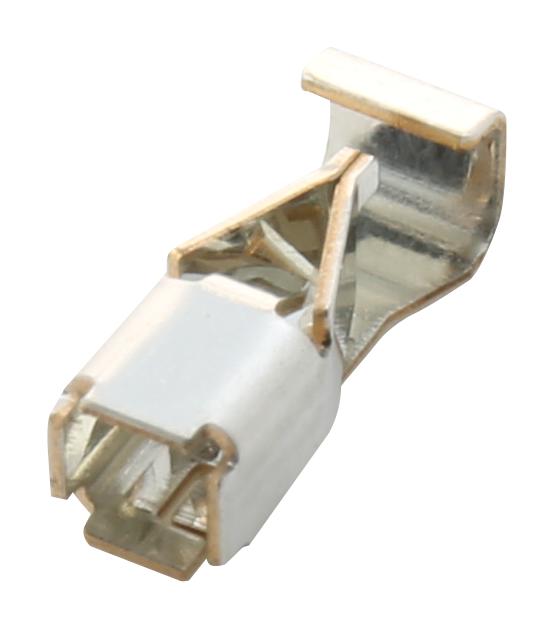

KYOCERA AVX 709296001017006 Wire-to-Board Contact
The 70-9296 Series is a versatile, reliable wire-to-board contact designed for SMT assembly. Made from tin-plated phosphor bronze, it supports wire gauges from 12 to 28 AWG with various sizes from 1.7mm to 4mm contact widths. The contacts provide high mechanical stability, maximum wire retention, and are packaged in tape and reel for automated placement. Ideal for linear board-to-board and module-to-module applications, these contacts are rated for 300V and up to 10A current, operating reliably between -40°C and +125°C with durability of 5 cycles.
KYOCERA AVX 709296001017006 Wire-to-Board Contact Specifications:
- Material: Tin-plated phosphor bronze
- Wire Gauge: 12-28 AWG
- Contact Widths: 1.7mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm
- Voltage Rating: 300V
- Current Rating: Up to 10A
- Operating Temperature: -40°C to +125°C
- Packaging: Tape and reel, 2,500 - 4,000 pieces per reel
- Durability: 5 cycles
- UL Reference: 90723
- Material Plating: Pure tin
- Contact Type: Horizontal, dual beam
- Application: Wire-to-board, linear BTB, module-to-module
- Connector Size: Various, compatible with 12-28 AWG wires
Buy the AVX Series 70-9296 Wire-to-Board Contact: 709296001017006
Order the AVX 70-9296 Series wire-to-board contact today for robust, high-quality connections suitable for automated SMT placement. With versions supporting 12-28 AWG wires, these contacts feature dual beam design for maximum wire retention and stability. Manufactured from tin-plated phosphor bronze, they operate efficiently between -40°C and +125°C and are rated for 300V and 10A. Packaged in tape and reel, they are ideal for linear board-to-board and module-to-module applications, ensuring reliable, long-lasting connections in industrial and electronic device manufacturing.
Get AVX 709296001017006 wire-to-board contact today—designed for precision, high wire retention, and reliable PCB connections.
Frequently Asked Questions
Where can I buy KYOCERA AVX 709296001017006?
You can click on the BUY or RFQ button to purchase 709296001017006 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 709296001017006?
You can download the 709296001017006 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 709296001017006?
KYOCERA AVX
