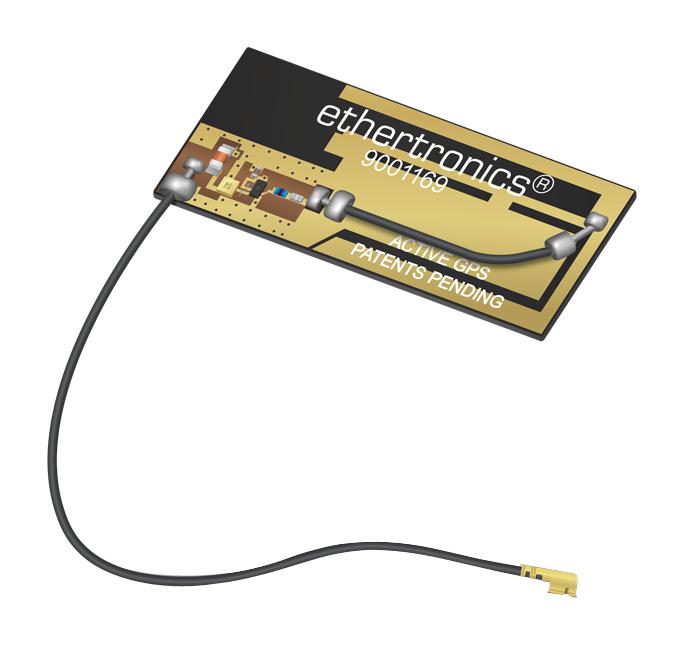

KYOCERA AVX 9001169 GPS Antenna
The GPS FPC Embedded Antenna with Low Noise Amplifier offers high RF performance in M2M and IoT applications like vehicle and asset tracking. Designed with a flexible substrate, it delivers efficiency and maintains high gain across various configurations. Embedded with a low power LNA, it ensures reliable signal amplification while consuming minimal power. This omni-directional antenna operates over -40°C to +85°C, includes a 100 mm cable, and complies with ROHS standards, making it an ideal choice for industrial and smart metering solutions demanding precise GPS functionality.
KYOCERA AVX 9001169 GPS Antenna Specifications:
- Dimensions: 41.0 ± 0.2 mm length, 15.5 ± 0.2 mm width
- Cable: 100 mm u.fl compatible
- Return Loss: >9 dB
- Efficiency: 55%
- Gain: 16.8 dB at 3.30 V, 15.72 dB at 2.70 V, 14.84 dB at 1.80 V
- Polarization: Linear
- Radiation Pattern: Omni-directional
- Feed Point Impedance: 50 ohms unbalanced
- Operation Voltage: +1.5 to +3.5 V
- Current: 3.9 mA
- Operating Temperature Range: -40°C to +85°C
- Humidity Range: 65-220%
- Certifications: RoHS compliant
Buy the Ethertronics 9001169 – Reliable GPS Antenna for Industrial Applications
Secure your GPS tracking and IoT projects today with the Ethertronics GPS Antenna. Featuring high efficiency, low power consumption, and a flexible substrate, this antenna ensures robust signal performance across a wide temperature range. Its omni-directional radiation pattern and embedded LNA deliver consistent connectivity for vehicle tracking, asset management, and industrial monitoring. Easy to integrate with a 100 mm cable, it is ROHS compliant and built to meet demanding industrial standards. Purchase online now for reliable and high-performance GPS solutions.
Buy Ethertronics 9001169 now and experience unmatched reliability and high RF performance for your GPS-enabled industrial and IoT devices.
Frequently Asked Questions
Where can I buy KYOCERA AVX 9001169?
You can click on the BUY or RFQ button to purchase 9001169 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part 9001169?
You can download the 9001169 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of 9001169?
KYOCERA AVX
