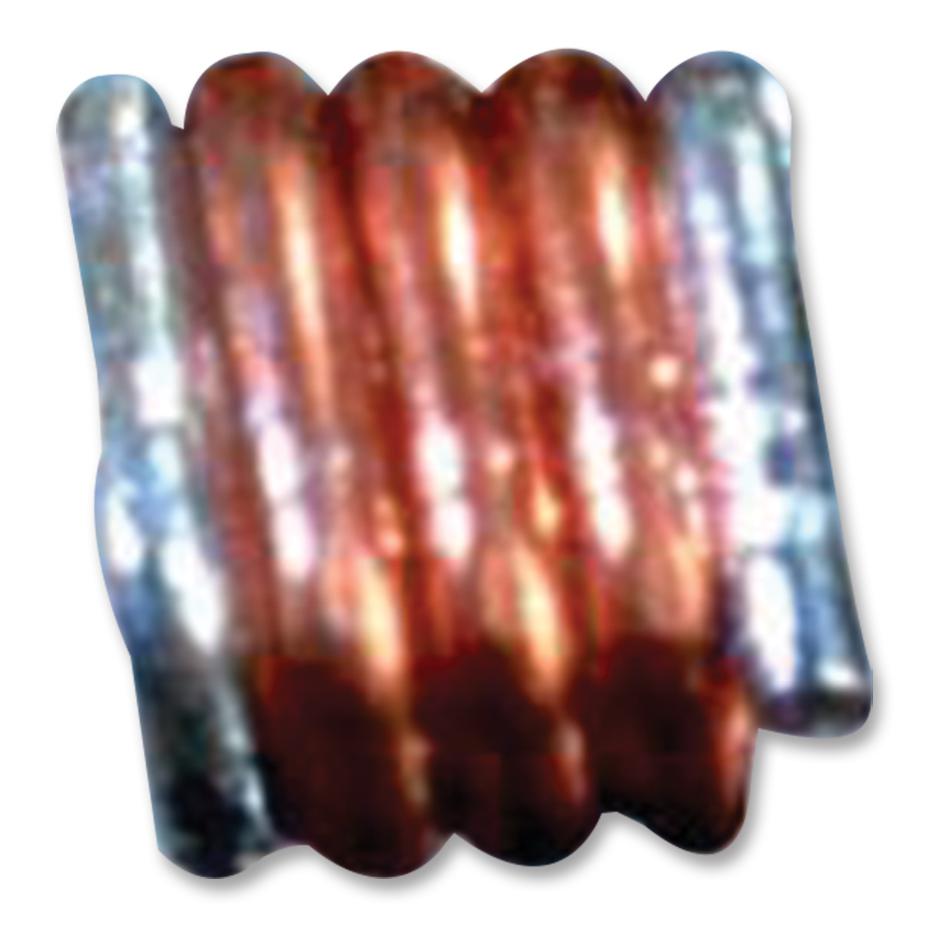

KYOCERA AVX AS0825N0GTR Square Air Core RF Inductor
The KYOCERA AVX AS Series Square Air Core RF Inductors are designed for RF circuits, broadband I/O filtering, frequency selection, and impedance matching. Their unique square cross-section provides improved performance and manufacturing advantages over traditional toroidal coils. These inductors offer high Q, high current handling, and excellent SRF, making them suitable for a wide range of applications including RF applications, broadband I/O filtering, and impedance matching. They are available in various sizes and inductance values to meet specific design needs.
KYOCERA AVX AS0825N0GTR Square Air Core RF Inductor Specifications:
- Inductance Range: 5.5nH to 27.3nH
- Inductance Tolerance: 2%, 5%, 10%
- Rated Current: 2.7A, 2.9A, 4.4A
- Operating Temperature: -40˚C to +125˚C
- Termination: 96.5% Tin/3% Silver over 0.5% Copper
- Q: min. 60, 64, 90, 90, 90, 90, 100, 100, 90, 100, 100, 100, 130, 130, 90, 130, 130, 130
- Test Frequency: 400 MHz
- DCR max: 3.4 mΩ, 6 mΩ, 7 mΩ, 8 mΩ, 9 mΩ, 10 mΩ, 6 mΩ, 7 mΩ, 6.3 mΩ, 8 mΩ, 9 mΩ, 10 mΩ, 6 mΩ, 7 mΩ, 7.2 mΩ, 8 mΩ, 9 mΩ, 10 mΩ
- SRF: 4.9 GHz, 5.2 GHz, 4.3 GHz, 4.8 GHz, 4.4 GHz, 4 GHz, 4.6 GHz, 4 GHz, 3.6 GHz, 4.3 GHz, 4 GHz, 3.5 GHz, 5.2 GHz, 4.3 GHz, 3 GHz, 3.4 GHz, 3.7 GHz, 2.6 GHz, 3.2 GHz
Buy the AS0825N0GTR KYOCERA AVX Square Air Core RF Inductor | myMectronic
Purchase the KYOCERA AVX AS0825N0GTR Square Air Core RF Inductor securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy KYOCERA AVX AS0825N0GTR?
You can click on the BUY or RFQ button to purchase AS0825N0GTR from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part AS0825N0GTR?
You can download the AS0825N0GTR datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of AS0825N0GTR?
KYOCERA AVX
