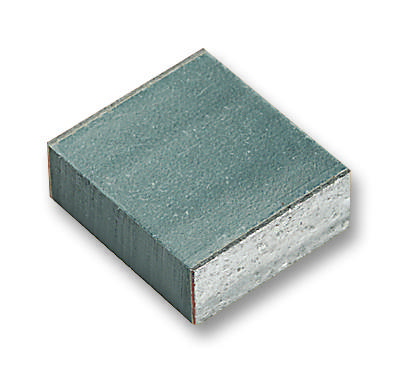

KYOCERA AVX CB017C0153JBA Film Capacitor
The PEN dielectric CB Series film chip capacitors are designed using a stacked construction with metallized polyethylene naphtalate. These non-polar, surface-mount devices offer high temperature dielectric films suitable for IR or vapor phase reflow processes, ensuring excellent thermal shock resistance and increased reliability. They feature low ESR & ESL, are used in low voltage applications for miniaturization, and are suitable for automotive, telecom, and industrial electronics. Packaging options include tape and reel for automated placement, with RoHS compliance and no flame retardant materials.
KYOCERA AVX CB017C0153JBA Film Capacitor Specifications:
- Capacitance Range: from 1nF to 4.7μF
- Nominal Voltages: from 25V to 6380V
- Temperature Range: -55°C to 125°C with voltage derating of 1.25%/°C between 105°C and 125°C
- Dielectric Material: Metallized polyethylene naphtalate PEN
- Outer Layer Termination: 100% matte Sn over Ni barrier, silver epoxy, brass
- Test Voltage: 1.4Vr for 2 sec at 25°C with high insulation resistance (>1000 MΩ / μF at 20°C, 1 min charge at 10Vdc)
- Climatic Category: 55/125/56
- Soldering Methods: IR or vapor phase reflow, not suitable for wave soldering
- Mounting: Surface-mount, tape and reel packaging, RoHS compliant, non-flammable dielectric film
- Physical Dimensions: sizes vary per capacity, e.g., 3.30 mm to 7.50 mm length, typical height around 1.15 to 1.80 mm
- Compliance: RoHS, ELV, lead-free, MSL 3
- Additional electrical parameters: ESR & ESL are low, no piezoelectric effect, self-healing technology
Buy the AVX CB Series Reliable Capacitors for Industrial Applications
Shop AVX CB Series film capacitors online today and secure high-quality, RoHS-compliant surface-mount components suitable for automotive, telecom, and industrial electronics. Designed with PEN dielectric for excellent thermal shock resistance and long-term reliability, these capacitors feature low ESR & ESL, making them ideal for high-frequency applications. With tape and reel packaging for automatic placement, they are easy to handle in mass production. Enhance your circuit performance with these durable, RoHS compliant capacitors—order now for fast delivery and dependable operation.
Buy AVX CB Series film capacitors now and experience unmatched reliability, thermal stability, and ease of use in miniaturized PCB designs.
Frequently Asked Questions
Where can I buy KYOCERA AVX CB017C0153JBA?
You can click on the BUY or RFQ button to purchase CB017C0153JBA from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part CB017C0153JBA?
You can download the CB017C0153JBA datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of CB017C0153JBA?
KYOCERA AVX
