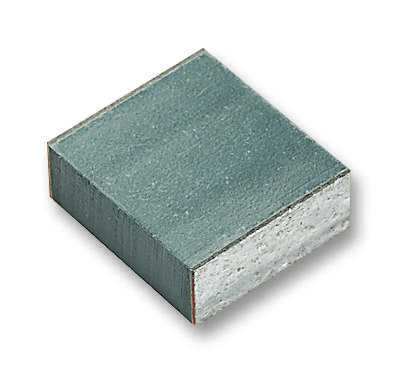

KYOCERA AVX CB017D0472JBA Film Capacitors
The PEN dielectric CB series film chip capacitors are suitable for high-temperature reflow processes, offering low ESR and ESL, excellent thermal shock resistance, and no piezoelectric effect. They are non-polar, with self-healing properties, and available in tape and reel form for automated assembly. Widely used in automotive, telecom, and industrial applications, these capacitors provide reliable performance in low voltage environments, supporting miniaturization and surface-mount device requirements across diverse electronic systems.
KYOCERA AVX CB017D0472JBA Film Capacitors Specifications:
- Capacitance Range: from 1nF to 4.7uF
- Nominal Voltages: 25Vdc to 6380Vdc
- Temperature Range: -55°C to 125°C, derating 1.25%/°C between 105°C and 125°C
- Dielectric Material: Metallized PEN (polyethylene naphtalate)
- Outer Layer Termination: 100% matte Sn with Ni barrier, silver epoxy resin brass
- Test Voltage: 1.4Vr for 2 sec at 25°C, insulation resistance > 1000 MΩ for VR < 100Vdc
- Dissipation Factor (DF): < 100 x 10^-3 at 1kHz
- Climatic Category: 55/125/56
- Soldering Methods: IR or vapor phase reflow (not suitable for wave soldering)
- Dimensions: varies by model, typical length 3.3-7.5 mm, width approx 1.6-3.6 mm, height approximately 0.045-0.236 inches
- Certifications: UL Listed, RoHS compliant, MSL 3
- Package: Available in tape & reel, suitable for automatic pick-and-place, non-polar
Buy the AVX CB Series U+2013 Reliable Film Capacitors for Industrial Applications
Discover the durability and reliability of our AVX film chip capacitors, designed for low-voltage applications requiring compact surface-mount solutions. These high-performance capacitors feature excellent thermal stability, self-healing properties, and RoHS compliance, making them ideal for automotive, telecommunications, and industrial electronics. Available in various capacitance and voltage ratings, they support efficient production with tape and reel packaging, ensuring seamless integration into automated assembly lines. Purchase online today and enhance the quality of your electronic design with proven reliability.
Order your AVX CB series film chip capacitors today and give your projects the dependable high-temperature performance they deserve.
Frequently Asked Questions
Where can I buy KYOCERA AVX CB017D0472JBA?
You can click on the BUY or RFQ button to purchase CB017D0472JBA from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part CB017D0472JBA?
You can download the CB017D0472JBA datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of CB017D0472JBA?
KYOCERA AVX
