KYOCERA AVX F970J336MAAHT3 High Temperature Chip Capacitor
The F97-HTS3 Series is a high-temperature, resin-molded chip capacitor designed for reliable performance in demanding environments up to 135°C. It features a compact 1206 size with high stability, low leakage current, and enhanced durability, making it suitable for automotive and industrial applications. Qualified under AEC-Q200 standards, it offers excellent lifespan, resistance to moisture, and thermal stability, ensuring high reliability in critical electronic systems such as engine ECU, transmission, and oil pumps. It provides a wide capacitance range from 0.33μF to 100μF, with rated voltages from 6.3V to 35V, and meets rigorous testing for endurance, stability, and leakage.
KYOCERA AVX F970J336MAAHT3 High Temperature Chip Capacitor Specifications:
- Category Temperature Range: -65 to +135°C
- Rated Temperature: +95°C
- Capacitance Range: 0.33μF to 100μF with codes 334 to 107
- Rated Voltage: 6.3V, 10V, 16V, 20V, 25V, 35V
- Capacitance Tolerance: +10%, -10% at 120Hz
- Leakage Current at 20°C: ≤ 0.01CV or 0.5μA (whichever is greater)
- Leakage Current at 95°C: ≤ 0.1CV or 5μA
- Leakage Current at 135°C: ≤ 0.125CV or 6.3μA
- Dissipation Factor: Refer to datasheet
- ESR at 100kHz: Refer to datasheet
- Failure rate level: 0.5%/1000 hours
- Compliance: RoHS, AEC-Q200 qualified
- Dimensions: 3.2mm x 1.6mm x 1.0mm (L x W x H), case size 1206

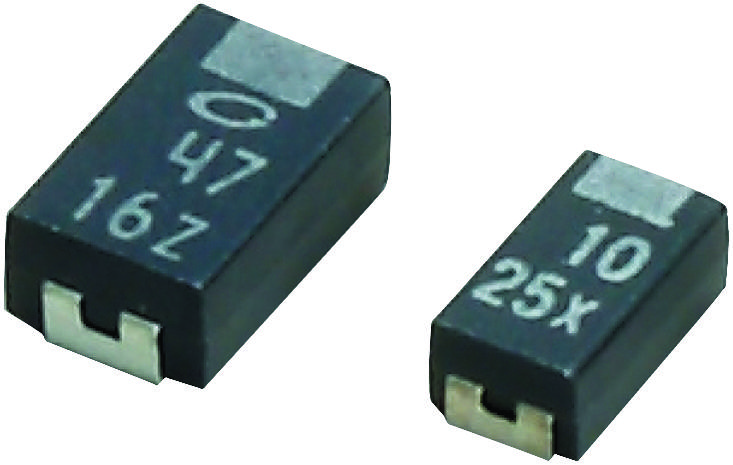

Buy the AVX F97-HTS3 U+2013 Reliable High-Temperature Capacitors for Industrial Applications
Enhance your electronic designs with the AVX F97-HTS3 series high-temperature chip capacitors. Designed for demanding environments up to 135°C, these reliable components feature a compact size, excellent thermal stability, and high durability suitable for automotive electronics, industrial equipment, and critical power systems. With a wide capacitance and voltage range, they meet strict industry standards including AEC-Q200 qualification. Purchase online today and secure top-quality capacitors that guarantee long-lasting performance and dependable operation across diverse applications.
Order your AVX F97-HTS3 Series high-temperature resin-molded chip capacitor today and ensure your automotive and industrial projects benefit from exceptional reliability and thermal stability.
Frequently Asked Questions
Where can I buy KYOCERA AVX F970J336MAAHT3?
You can click on the BUY or RFQ button to purchase F970J336MAAHT3 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part F970J336MAAHT3?
You can download the F970J336MAAHT3 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of F970J336MAAHT3?
KYOCERA AVX
