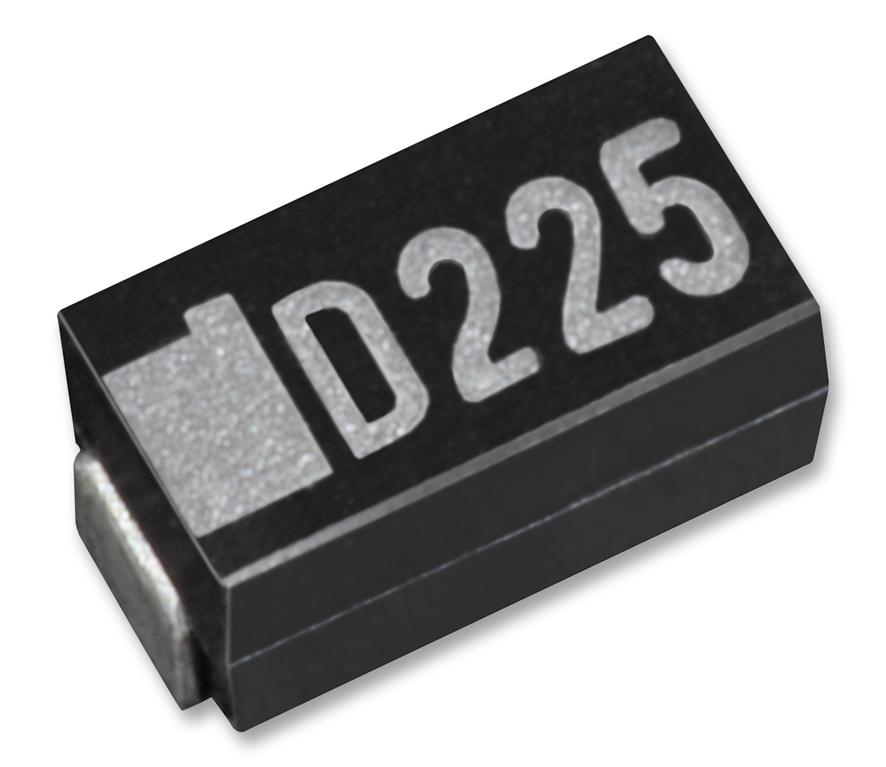

KYOCERA AVX F971A476MBAHT3 High Temperature Chip Capacitor
The F97-HTS3 series is a high-reliability resin-molded chip capacitor designed for demanding industrial and automotive applications. Rating at 135°C, it boasts features like RoHS compliance, AEC-Q200 qualification, and low failure rates, making it suitable for engine ECUs, transmissions, and industrial equipment. Its robust construction ensures stability over temperature variations from -55°C to +135°C, with capacitance tolerances of ±10% or ±20%. The compact 1206 case size facilitates easy integration into space-constrained layouts, providing dependable performance in high-temperature environments.
KYOCERA AVX F971A476MBAHT3 High Temperature Chip Capacitor Specifications:
- Category Temperature Range: -55°C to +135°C
- Rated Temperature: +95°C
- Capacitance Tolerance: ±10% or ±20%, at 120Hz
- Leakage Current (20°C): not more than 0.01CV or 0.5μA
- Leakage Current (95°C): not more than 0.1CV or 5μA
- Leakage Current (135°C): not more than 0.125CV or 6.3μA
- Dissipation Factor: Refer to datasheet
- ESR @ 100kHz: Refer to datasheet
- Dimensions: 3.2mm x 1.6mm x 1.2mm (WxHxL)
- Case Type: 1206
- Flammability: UL 94V-0
- Compliance: RoHS, AEC-Q200 qualified
- Application: Automotive electronics, industrial equipment
- Failure Rate Level: 0.5% / 1000 hours
Buy the AVX F97-HTS3 U+2013 Reliable High Temperature Capacitor for Industrial Applications
Purchase the AVX F97-HTS3 high temperature chip capacitor online today to ensure reliable performance in harsh environments. Designed to operate at 135°C, it is ideal for automotive electronics, industrial equipment, and high-reliability circuits. Its RoHS compliance and AEC-Q200 qualification guarantee quality and sustainability. Compact and resistance to temperature fluctuations from -55°C to +135°C, this capacitor provides excellent capacitance stability, low leakage current, and robust construction for long-lasting operation in space-constrained and high-temperature applications. Order now for quick delivery and dependable performance.
Get AVX F97-HTS3 today—built for precision, durability, and high-temperature reliability in demanding industrial and automotive environments.
