KYOCERA AVX HLC022R7BTTR High Current Inductor
The MLO High Current Inductor is a low profile, surface-mount organic multilayer inductor suitable for mobile communications, satellite, GPS, and collision avoidance systems. It supports high current handling, high Q, and excellent stability over frequency. Its 0402 size offers a compact design with expansion-matched compatibility to PCB boards. Featuring RoHS compliant tin finishes, it undergoes rigorous electrical and visual testing, making it reliable for high-frequency applications in demanding environments operating from -55°C to +125°C. Designed for high performance in RF circuits and matching networks.
KYOCERA AVX HLC022R7BTTR High Current Inductor Specifications:
- Case Size: 0402
- Temperature Range: -55°C to +125°C
- Operating Frequency: Up to 2400 MHz
- Maximum SRF: Varies with inductance, up to 2.2 GHz
- Inductance Tolerance: Usually ±0.2nH or ±0.5nH
- Material: Organic multilayer technology with low loss organic cores
- DC Resistance: Low parasitic resistance for high current
- Q Factor: High Q for high frequency stability
- Finish: RoHS compliant Sn finish
- Dimensions: Length 1.00±0.10 mm, Width 0.58±0.075 mm, Thickness 0.352±0.10 mm
- Application: Mobile communications, satellite, GPS, collision avoidance, wireless LAN, RF matching networks
- Reliability: Tested per JEDEC and MIL standards
- Expansion matching: To FR4 PCB, surface mount, high density interconnect
- Operating Power: Supports high current applications

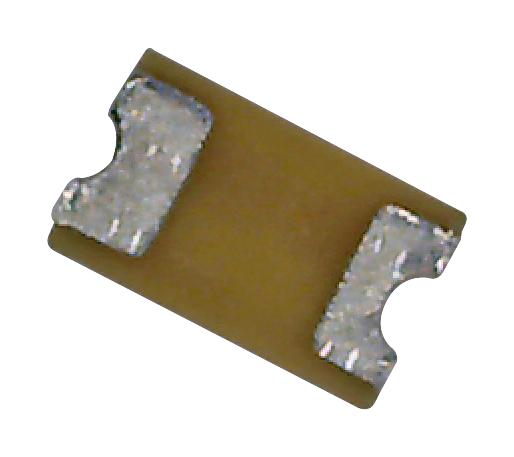

Buy the Buy Organic Multilayer High Current Inductor Part Number HLC022R7BTTR Online
Purchase the high performance organic multilayer high current inductor online today. Designed for RF applications, satellite, GPS, and collision avoidance systems, this surface mount component offers high Q, stable operation, and excellent heat dissipation. With RoHS compliant Sn finishes and rigorous testing, it ensures reliable performance from -55°C to +125°C. Its compact 0402 size makes it ideal for space-constrained designs while supporting high current handling and high frequency stability. Order now for quick delivery and superior circuit reliability.
Buy AVX High Current Inductor HLC022R7BTTR now and experience unmatched reliability and performance in RF and mobile communication circuits.
Frequently Asked Questions
Where can I buy KYOCERA AVX HLC022R7BTTR?
You can click on the BUY or RFQ button to purchase HLC022R7BTTR from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part HLC022R7BTTR?
You can download the HLC022R7BTTR datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of HLC022R7BTTR?
KYOCERA AVX
