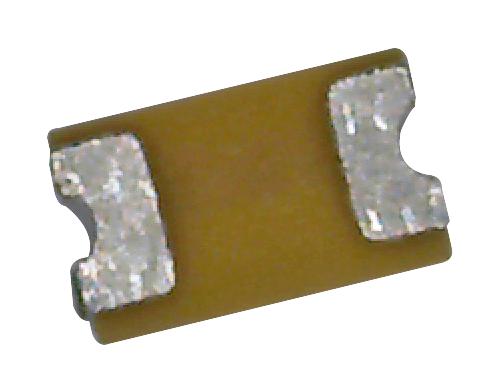

KYOCERA AVX HLQ021R3BTTR RF Inductor
The Multilayer Organic Hi-Q Inductor series features low-profile, surface-mount components designed for mobile communications, satellite, GPS, and collision avoidance. Utilizing patented organic multilayer technology, these inductors support high frequencies with high Q and low DC resistance, ensuring stability and excellent solderability. They are expansion matched to FR4 PCBs, available in 0402 case size, RoHS compliant, and undergo rigorous JEDEC and mil standard testing. Their reliable, miniature design makes them ideal for high-performance RF matching networks and wireless applications.
KYOCERA AVX HLQ021R3BTTR RF Inductor Specifications:
- Case Size: 0402 (ultra-compact)
- Inductance Range: 0.8nH to 32nH with tolerances ±3%
- Qmin: 17 at 450MHz
- SRF: Minimum 95GHz
- Rdc Max: 2 – 4100 milliohms depending on model
- Operating Temperature: -55°C to +125°C
- Finish: RoHS compliant Sn
- Dimensions: Length 0.040 inches, Width 0.023 inches, Height 0.014 inches
- Impedance: Nominal based on 50Ω system
- Key Features: High Q, high SRF, low parasitics, expansion matched to PCB, surface mountable
- Reliability: Tested per JEDEC and mil standards
- Application: RF circuits, mobile devices, GPS modules, satellite communication, wireless LANs
Buy the AVX HLQ Series U–Reliable High-Q RF Inductors for Industrial Applications
Discover the high-performance AVX RF Inductor designed for demanding RF and wireless applications. This device offers high Q, excellent stability, and low parasitic losses, ensuring optimal performance in mobile, satellite, and GPS systems. Its compact 0402 size and expansion matching with PCB frameworks make it ideal for space-constrained designs. Manufactured with RoHS-compliant lead-free finishes, this surface-mount component undergoes rigorous testing to meet JEDEC and military standards. Elevate your RF designs with this reliable, miniature inductor available for easy online purchase now.
Get AVX HLQ021R3BTTR today—built for precision and long-lasting durability in RF and wireless systems.
Frequently Asked Questions
Where can I buy KYOCERA AVX HLQ021R3BTTR?
You can click on the BUY or RFQ button to purchase HLQ021R3BTTR from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part HLQ021R3BTTR?
You can download the HLQ021R3BTTR datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of HLQ021R3BTTR?
KYOCERA AVX
