KYOCERA AVX HLQ022R2BTTR High-Q RF Inductor
The Multilayer Organic Hi-Q Inductor series offers a low profile, surface-mount inductors developed with advanced multilayer organic technology for high Q, high stability, and excellent electrical performance. Suitable for mobile communications, satellite applications, GPS, collision avoidance, and wireless LANs, these inductors feature a 0402 case size, RoHS compliance, and expansion match to PCB. They deliver high SRF, low parasitic values, and reliable solderability, supporting demanding RF and high-frequency circuits with temperatures from -55°C to +125°C, ensuring durability and high performance in compact designs.
KYOCERA AVX HLQ022R2BTTR High-Q RF Inductor Specifications:
- Inductance Range: 0.8nH to 32nH
- Tolerance: ±3%
- Qmin: 17
- SRF min: 195-480 MHz depending on model
- Rdc max: 0.0052 Ohms
- Ide max: 85-410 mA depending on model
- Operating Temperature: -55°C to +125°C
- Case Size: 0402 (Alignment 0.04 x 0.02 inches)
- Finish: RoHS compliant Sn
- Dimensions: L 1.0 mm, W 0.5 mm, T 0.75 mm
- Construction: Multilayer organic, copper windings
- Mounting: Surface mount
- Application: RF circuits, mobile communications, GPS, satellite, collision avoidance, Wi-Fi
- Reliability: Tested to JEDEC standards, high repeatability

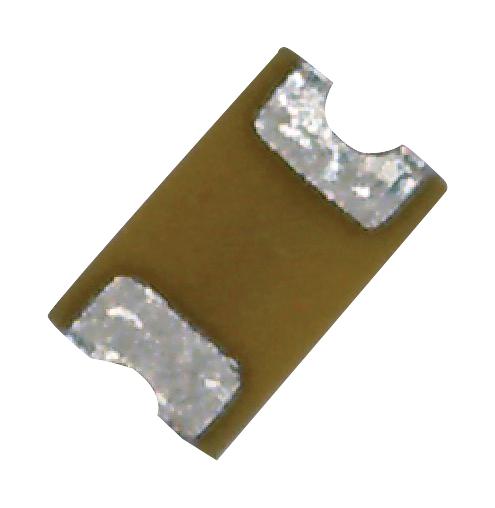

Buy the Buy AVX Hi-Q Inductor Part Number HLQ022R2BTTR Online
Purchase the AVX HLQ022R2BTTR high-Q RF inductor today to ensure superior performance in your RF circuits, mobile devices, and satellite technology. This 0402 surface-mount component offers excellent stability, high self-resonant frequency, and low parasitic resistance. Its RoHS compliance and expansion match to PCBs make it ideal for demanding high-frequency applications. With a robust construction supporting temperature ranges from -55°C to +125°C, this inductor guarantees high reliability, easy solderability, and consistent quality for your innovative electronic projects. Buy now to enhance connectivity and performance.
Get AVX HLQ022R2BTTR today—designed for high-frequency stability and reliable RF performance in compact electronic assemblies.
Frequently Asked Questions
Where can I buy KYOCERA AVX HLQ022R2BTTR?
You can click on the BUY or RFQ button to purchase HLQ022R2BTTR from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part HLQ022R2BTTR?
You can download the HLQ022R2BTTR datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of HLQ022R2BTTR?
KYOCERA AVX
