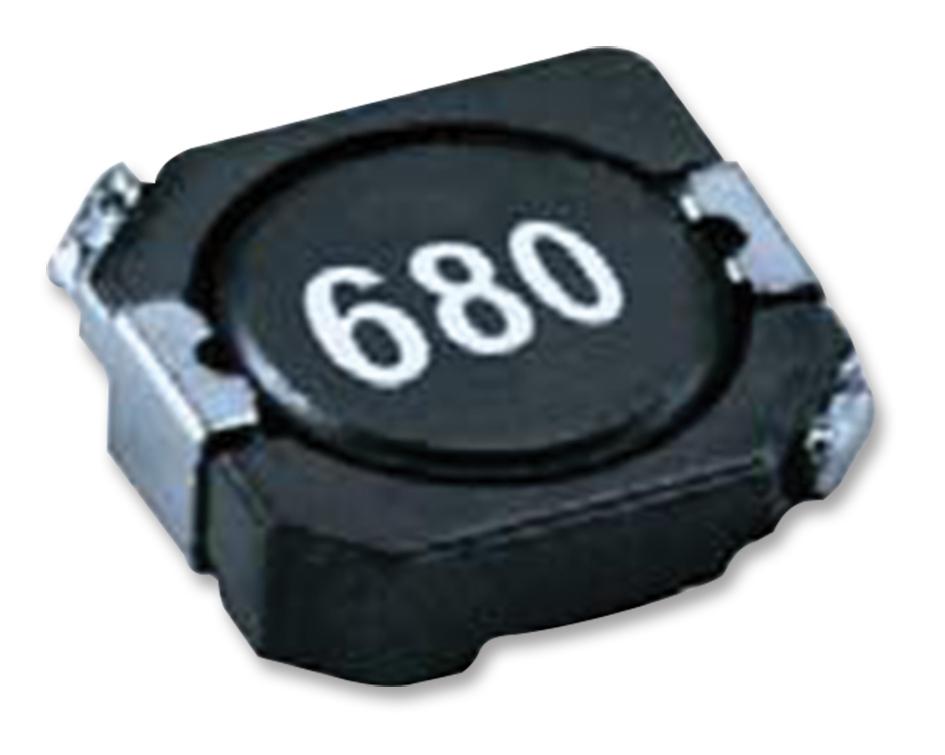

KYOCERA AVX LMXS101DN220LTAS Power Inductor
The LMXS Series shielded power inductor offers magnetically shielded construction with high current ratings, suitable for DC/DC converters, LCD televisions, notebooks, and digital cameras. Operating from -40°C to +125°C, it features low DCR and is RoHS compliant. Designed in a compact 10x10xD mm size, it provides reliable inductance for portable and industrial applications, with rated currents up to 143A for various inductance values ranging from 0.8µH to 47.00µH. Its robust construction ensures reduced electromagnetic interference and excellent thermal stability.
KYOCERA AVX LMXS101DN220LTAS Power Inductor Specifications:
- Dimensions: 10x10xD mm
- Operating Temperature: -40°C to +125°C
- Rated Current: Up to 143A depending on inductance
- Inductance Range: 0.8µH to 47.00µH
- DCR Max: 0.0081 to 1.090 Ohms depending on model
- Construction: Magnetically shielded
- RoHS: Compliant
- Frequency Test: 100kHz at 1.0V
- Termination: Sn plated
- Tolerance Codes: ORS, 1R5, 2R2, 3R3
- Application: DC/DC converters, LCD TVs, notebooks, digital cameras
Buy the LMax Series Inductor: LMXS101DN220LTAS
Discover the high-performance shielded power inductor from the LMax Series, ideal for demanding portable and industrial applications. Designed with magnetically shielded construction, it offers high rated currents up to 143A and low DCR for efficient power management. Operating from -40°C to +125°C, this RoHS-compliant component ensures durability and thermal stability for DC/DC converters, LCD televisions, notebooks, and digital cameras. Available in compact 10x10mm size, it’s perfect for modern electronic device designs and ensures reliable inductance performance in tight spaces.
Get LMax Series LMXS101DN220LTAS today—built for high-current stability and reliable performance in portable and industrial applications.
Frequently Asked Questions
Where can I buy KYOCERA AVX LMXS101DN220LTAS?
You can click on the BUY or RFQ button to purchase LMXS101DN220LTAS from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part LMXS101DN220LTAS?
You can download the LMXS101DN220LTAS datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of LMXS101DN220LTAS?
KYOCERA AVX
