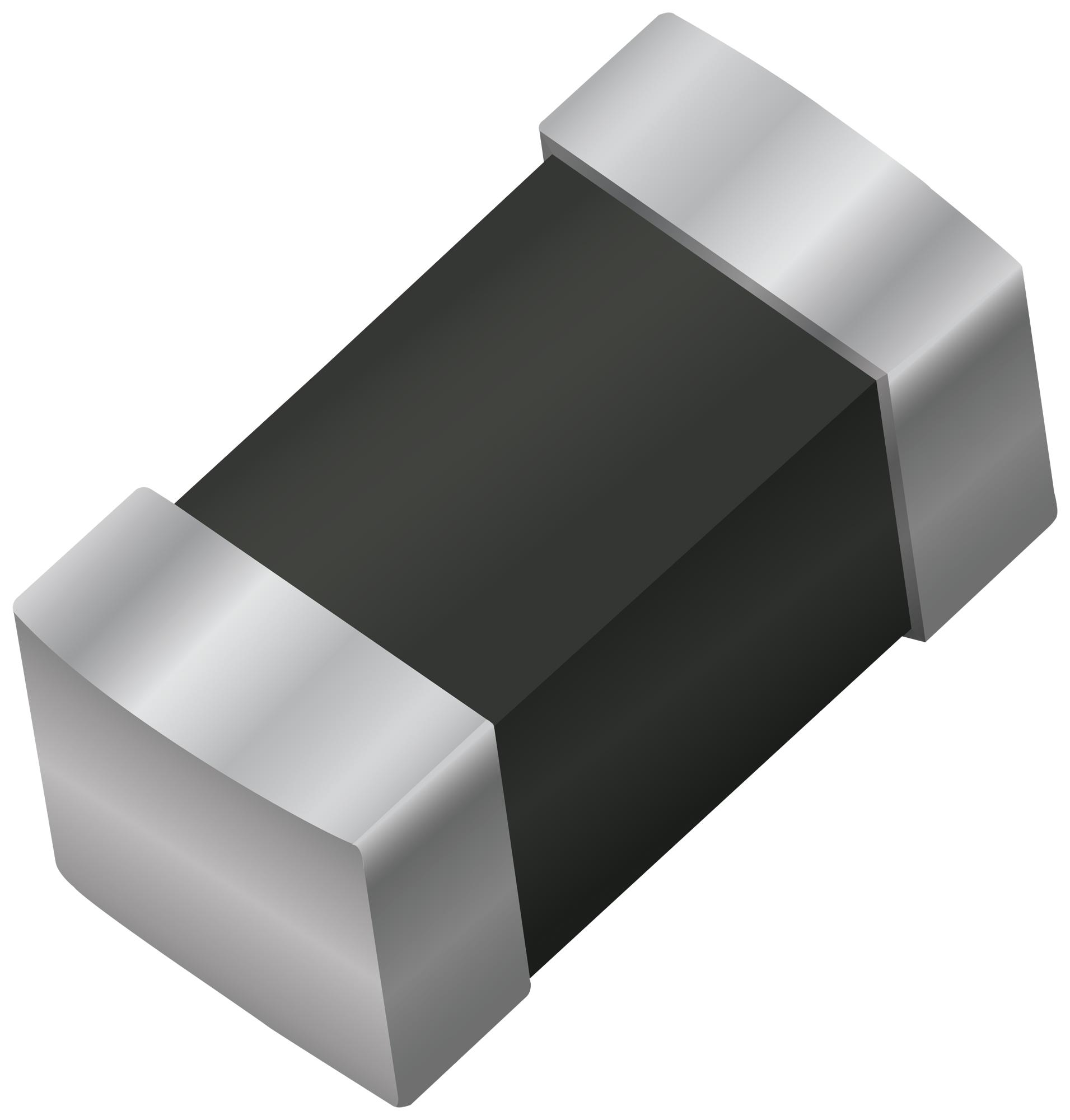

KYOCERA AVX NB20L00183JBA Surface Mount NTC Thermistor
High-quality surface-mount NTC thermistor suitable for temperature compensation and control in electronic circuits. Featuring nickel barrier termination, models NB 12 and NB 20 offer reliability in soldering processes, with operating temperatures from -55°C to +150°C. They are ideal for LCDs, battery packs, mobile phones, CD players, heating systems, air conditioning, switch mode power supplies, pressure sensor compensation, and power transistor protection. Designed for automation, these thermistors ensure stable performance, excellent solderability, and broad application compatibility across various electronic devices.
KYOCERA AVX NB20L00183JBA Surface Mount NTC Thermistor Specifications:
- Types: NB 12 (IEC size 0805), NB 20 (IEC size 1206), NB 21 (IEC size 0603)
- Operating Temperature Range: -55°C to +150°C
- Solderability: Good, with nickel barrier termination meeting severe soldering process requirements
- Maximum Dissipation at 25°C: 0.12 W (NB 12), 0.24 W (NB 20), 0.07 W (NB 21)
- Resistance Tolerance on Rn (25°C): +5%, +10%, +20%
- Climatic Category: 40/125/56
- Resistance Range at 25°C: from a few ohms to 100,000 ohms (external datasheets required for exact values)
- Thermal Dissipation Factor: 2mW/°C (NB 12), 4mW/°C (NB 20), 1mW/°C (NB 21)
- Thermal Time Constant: 5s (NB 12), 7s (NB 20), 4s (NB 21)
- Soldering: Compatible with Pb-free reflow up to 270°C; recommended solder profiles provided
- Packaging: Tape and reel options available for automatic insertion, with sizes compatible with IEC standards
Buy the NTC Thermistor Series NB: High-Quality Surface Mount Temperature Sensor - Part NB20L00183JBA
Order the NTCSMD Thermistor NB20L00183JBA online today for reliable temperature sensing in electronic devices. Designed with nickel barrier termination for excellent solderability, these thermistors operate from -55°C to +150°C. Perfect for applications like LCD compensation, battery packs, and power supply regulation, they ensure accurate temperature control. With optimal packaging for automated assembly, this high-quality thermistor guarantees durability, consistency, and top performance, making it an essential component for your electronic projects and manufacturing needs.
Buy NTCSMD Thermistor NB20L00183JBA now and experience unmatched reliability, perfect for precise temperature control in your electronics.
Frequently Asked Questions
Where can I buy KYOCERA AVX NB20L00183JBA?
You can click on the BUY or RFQ button to purchase NB20L00183JBA from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part NB20L00183JBA?
You can download the NB20L00183JBA datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of NB20L00183JBA?
KYOCERA AVX
