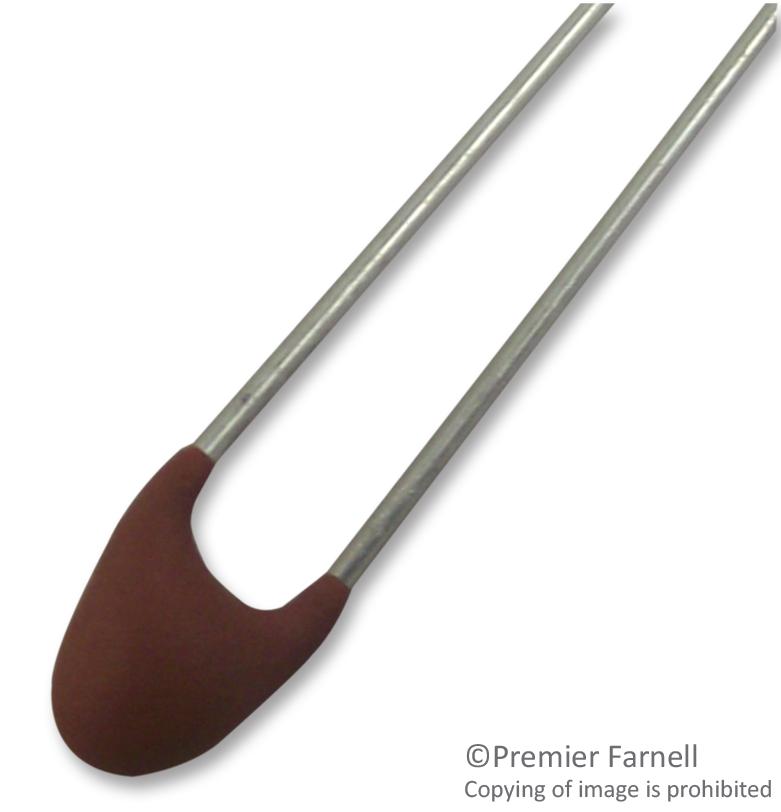

KYOCERA AVX ND03M00472J Thermistor Disc
The product is a general-purpose thermistor disc designed for applications like alarm systems, temperature regulation, level detection, and compensation. It features epoxy-phenolic resin coating, radial tinned copper leads, and a wide operating temperature range from -55°C to +150°C. Various resistance values are available, such as 4.7KΩ and 6.8KΩ, with tolerances typically at +5%, +10%, and +20%. It offers maximum dissipation power up to 0.9W, with quick response times below 38 seconds, ensuring reliable temperature sensing in demanding environments.
KYOCERA AVX ND03M00472J Thermistor Disc Specifications:
- Operating Temperature Range: -55°C to +150°C
- Resistance Range at 25°C: 470Ω to 68,000Ω
- Tolerance on Resistance: +5%, +10%, +20%
- Maximum Dissipation at 25°C: 0.9W
- Material: Epoxy-phenolic resin coating
- Leads: Radial copper wire, tinned
- Response Time: Less than 38 seconds
- Climatic Category: 55/125/56-434
- Thermal Dissipation Factor: 6.9 to 8.5 mW/°C
- Thermal Time Constant: 18 to 30 seconds
Buy the NTC Thermistor Series ND:ND03M00472
Order the NT Series thermistor disc ND03M00472 now to ensure accurate temperature monitoring in your application. This versatile component features epoxy coating, wide temperature operating range, and resistance options from 470Ω to 68kΩ. Designed for reliability with quick response times under 38 seconds, it’s ideal for temperature regulation, alarm systems, and level detection. Delivered in bulk or reel packaging, it guarantees consistency, durability, and optimal performance for industrial and professional use. Purchase online today for swift delivery and competitive pricing.
Get NT series thermistor ND03M00472 today—built for precision temperature sensing and long-lasting durability.
Frequently Asked Questions
Where can I buy KYOCERA AVX ND03M00472J?
You can click on the BUY or RFQ button to purchase ND03M00472J from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part ND03M00472J?
You can download the ND03M00472J datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of ND03M00472J?
KYOCERA AVX
