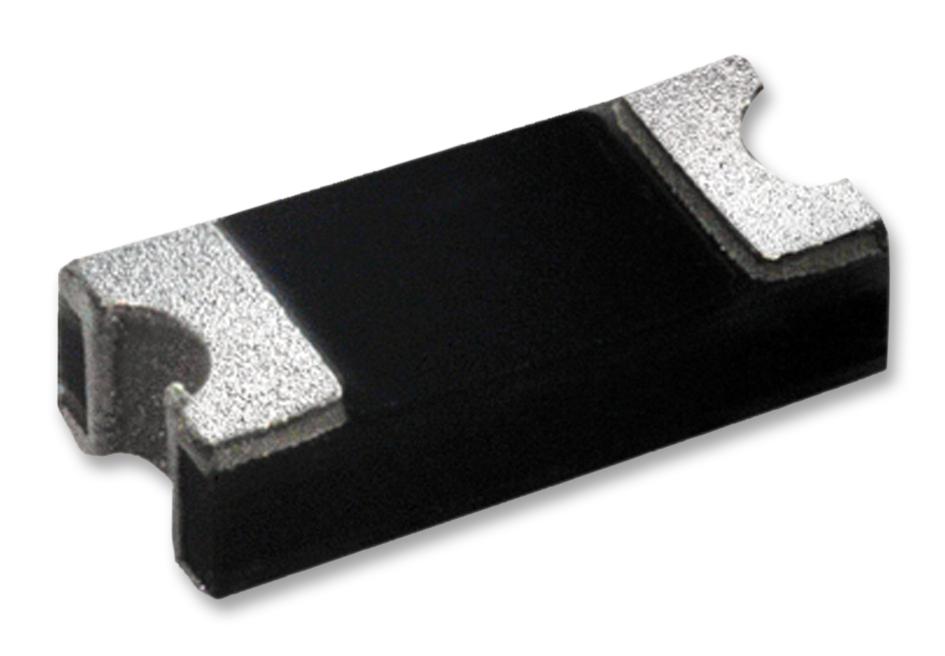

KYOCERA AVX SD1206T040S2R0 Schottky Rectifier Diode
The SD1206T040S2R0 Schottky barrier rectifier diode features a lead-less chip form with a 40V reverse voltage, 2A forward current, low forward voltage drop, and high efficiency. Designed for surface-mount applications, it offers excellent heat transfer, reliability, and low power loss. Suitable for switch mode power supplies, high-frequency rectification, and reverse bias protection, it complies with RoHS standards, halogen-free materials, and UL 94V-0 class packaging, ensuring environmentally friendly, durable performance in compact electronic devices and industrial systems.
KYOCERA AVX SD1206T040S2R0 Schottky Rectifier Diode Specifications:
- Reverse Voltage: 40V
- Forward Current: 2A
- Peak Surge Current: 50A
- Forward Voltage (Max): 0.46V at 2A
- Operating Temperature: -55°C to 125°C
- Storage Temperature: -55°C to 150°C
- Case Size: 1206 (inch): 3.2 x 1.6 mm
- Lead Material: 100% Sn plated, solderable
- Package Material: UL 94V-0, halogen-free
- Mounting Style: Surface-mount
- Power Dissipation: Typically 0.75W
- Insulation Style: Plated surface
- Compliance: RoHS, UL Listed, halogen-free
Buy the AVX 3220 – Reliable Rectifier Diode for Industrial Applications
Purchase the AVX series Schottky rectifier diode online today for your power supply, reverse bias protection, or high-frequency rectification needs. This lead-less chip design offers excellent heat transfer, high efficiency, and low forward voltage drop, ensuring reliable performance in industrial, consumer, and automotive applications. RoHS compliant and halogen-free, it ensures environmentally responsible manufacturing. With a compact size of 1206 case and maximum operating temperature of 125°C, it is perfect for space-constrained electronics requiring durability and energy efficiency. Buy now for fast delivery and quality assurance.
Order your AVX Series3220 Schottky diode today and give your projects the dependable quality they deserve with high current handling capability and low power loss.
Frequently Asked Questions
Where can I buy KYOCERA AVX SD1206T040S2R0?
You can click on the BUY or RFQ button to purchase SD1206T040S2R0 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part SD1206T040S2R0?
You can download the SD1206T040S2R0 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of SD1206T040S2R0?
KYOCERA AVX
