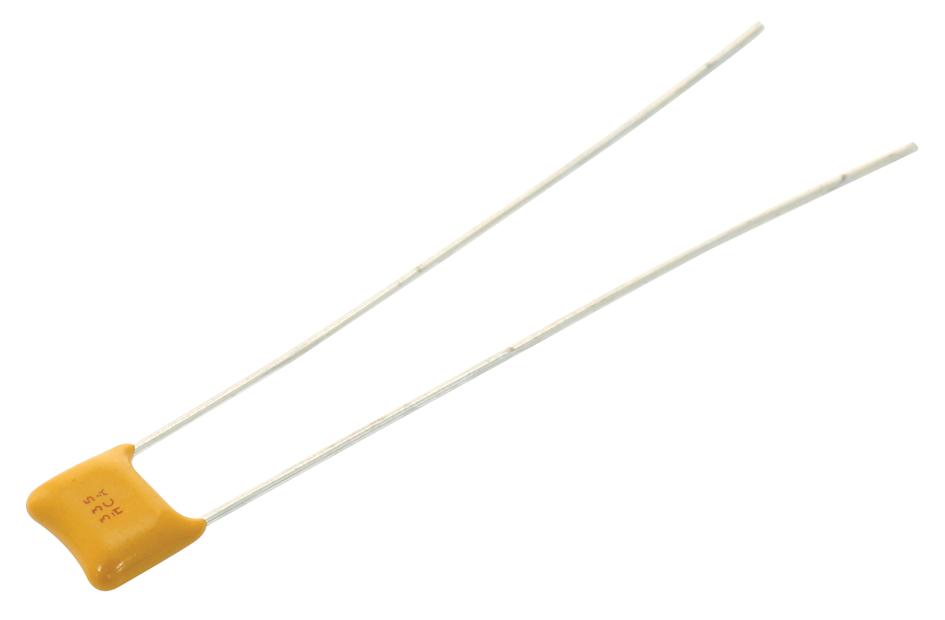

KYOCERA AVX SR305C105KAA Multilayer Ceramic Capacitor
The SR305C105KAA is a radial-lead multilayer ceramic capacitor constructed with ceramic layers embedded in an organic binder. These ceramic layers, typically between 1 to 3 mils thick, are stacked with metal electrodes deposited on each layer. When sintered at high temperatures, the result is a monolithic ceramic block capable of delivering high capacitance in a small form factor. The capacitor features an epoxy case, is made with 100% tin-lead solder, and is AEC-Q200 qualified for automotive applications.
KYOCERA AVX SR305C105KAA Multilayer Ceramic Capacitor Specifications:
- Capacitance: 1uF
- Voltage Rating: 100V
- Dielectric Type: X7R
- Case Material: Epoxy
- Lead Material: RoHS compliant, 100% tin
- Lead Diameter: 0.635 mm
- Lead Spacing: 10.16 mm
- Maximum Capacitance: 1uF at 100V
- Temperature Coefficient: X7R
- Operating Temperature Range: -55°C to +125°C
- Size: Approximately 10.16 mm width, 12.70 mm height
- Packaging: Reel or bulk options available
- Certification: AEC-Q200 qualified for automotive
- Construction: Ceramic layers with metal electrodes in organic binder
Buy the Buy AVX SR305C105KAA Part Number SR305C105KAA Online
Purchase the AVX SR305C105KAA multilayer ceramic capacitor online today. Designed with ceramic layers in an epoxy case, it offers high capacitance in a small form factor, with RoHS compliance and automotive qualification, ensuring reliable performance under demanding conditions. Suitable for high-reliability applications, it features a voltage rating of 100V, a dielectric type X7R, and a lead diameter of 0.635 mm. Easy to order online for fast delivery to support your electronics and automotive projects.
Order your AVX SeriesSR305C105KAA high-reliability ceramic capacitor today and benefit from its automotive-grade durability and compact design.
Frequently Asked Questions
Where can I buy KYOCERA AVX SR305C105KAA?
You can click on the BUY or RFQ button to purchase SR305C105KAA from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part SR305C105KAA?
You can download the SR305C105KAA datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of SR305C105KAA?
KYOCERA AVX
