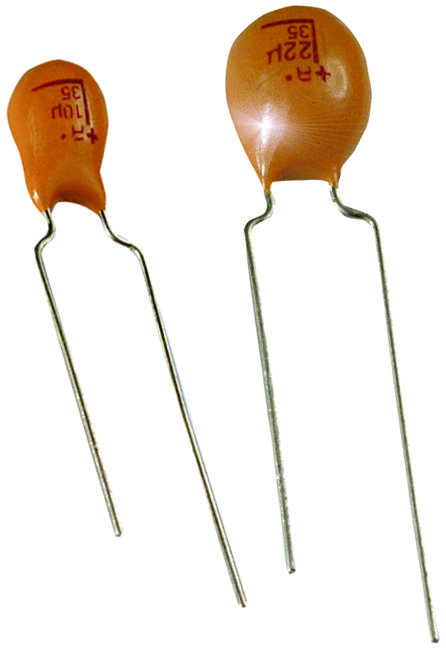

KYOCERA AVX TAP105K025SCS Radial Capacitors
The TAP series dipped radial capacitors are professional-grade, flame-retardant, lead-free components designed for reliability in various electronic applications. They feature low leakage current, impedance, and exceptional temperature stability, operating reliably up to +125°C. Available in 15 case sizes with wide capacitance (0.10 UF to 330 UF) and voltage ranges, these capacitors are suitable for automatic insertion and high-temperature environments. They meet RoHS standards, have robust marking for polarity, capacitance, and voltage, and are ideal for demanding electronic circuits requiring stable performance.
KYOCERA AVX TAP105K025SCS Radial Capacitors Specifications:
- Capacitance Range: 0.10 UF to 330 UF
- Capacitance Tolerance: +20%, +10% (+5% optional)
- Rated Voltage (DC): from 6.3V to 50V depending on case size
- Surge Voltage: up to 65V at +85°C
- Temperature Range: -56°C to +125°C
- Environmental Classification: 55/125/56
- Dissipation Factor: varies from 0.04 to 0.10 depending on capacitance
- Case Dimensions: up to 18.5mm height and 17mm diameter for larger sizes
- Polarity: Polarity marked with laser; includes capacitance, rated voltage, and logo
- RoHS compliant, lead-free, flame-retardant gold epoxy resin
- Operating Temperature: up to +125°C with derating above 85°C
- Reliability: 1% failure per 1000 hours at 85°C with 0.19V series impedance
- Qualification: CECC 30201-032
- Marking: Laser-marked polarity, capacitance, voltage, AVX logo
- Packaging: Loose or taped and reeled for automated assembly
Buy the KYOCERA-AVX Series Radial Capacitors: TAP105K025SCS
Purchase AVX TAP series radial capacitors online today and enjoy premium quality components suitable for industrial electronics, high-temperature applications, and automatic insertion processes. With extensive voltage and capacitance options, RoHS compliance, and exceptional temperature stability up to +125°C, these lead-free capacitors ensure long-term durability and reliable performance. Whether for new designs or replacements, buy online to benefit from fast delivery, competitive pricing, and verified quality standards, making your electronic projects more efficient and secure.
Buy AVX TAP series dipped radial capacitors now and experience unmatched reliability and performance in demanding electronic environments.
Frequently Asked Questions
Where can I buy KYOCERA AVX TAP105K025SCS?
You can click on the BUY or RFQ button to purchase TAP105K025SCS from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part TAP105K025SCS?
You can download the TAP105K025SCS datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of TAP105K025SCS?
KYOCERA AVX
