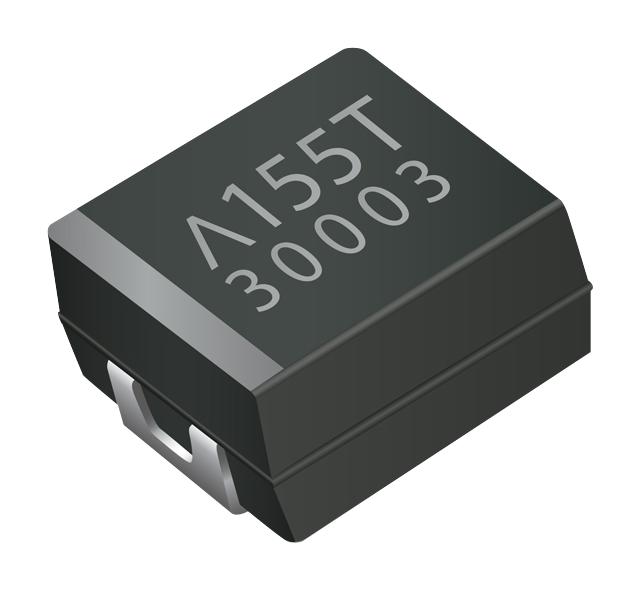

KYOCERA AVX TCBB226M006CRSZ0700 Conductive Polymer Capacitor
The TCBB226M006CRSZ0700 is a high-performance conductive polymer capacitor designed for long-lasting operation in demanding environments. Suitable for telecommunications, industrial, and avionics applications, it features a capacitance of 22uF at a rated voltage of 6.3V. The capacitor operates from -55°C to +125°C, with a low ESR, high reliability of 0.5% per 1000 hours at 85°C, and excellent moisture and vibration resistance. Its construction includes SnPb plating, ensuring compliance with industry standards for durability and performance.
KYOCERA AVX TCBB226M006CRSZ0700 Conductive Polymer Capacitor Specifications:
- Capacitance: 22uF
- Rated Voltage: 6.3V
- Temperature Range: -55°C to +125°C
- Leakage Current DCL: 0.1CV
- Basic Reliability: 0.5% per 1000 hours at 85°C
- Termination Finish: SnPb Plating (Non RoHS)
- ESR: Low ESR, maximum 1.25 times catalog limit at 100kHz
- Moisture Sensitivity Level: MSL 3
- Endurance: 2000 hours at 125°C, 2/3 rated voltage
- Vibration and Shock Resistance: MIL-STD-202
- Construction includes high-reliability resin and metal terminals
- Operating Temperature: -55°C to +125°C
- Polymer electrolyte for stable performance
- Compliance: RoHS, non-ER (standard)
- Maximum ESR at 100kHz: 70 mΩ
- Maximum RMS Current: 600 mA at 85°C
- Package: Compact radial case with standard dimensions
- Design suited for high-reliability power supply filtering
- Surge testing: 10x cycles at specified conditions
- Manufactured with 100% tin plating in certain versions
Buy the Buy AVX Conductive Polymer Capacitor Part Number TCBB226M006CRSZ0700 Online
Purchase the AVX Conductive Polymer Capacitor, model TCBB226M006CRSZ0700, designed for high reliability in demanding environments like telecommunications, aerospace, and industrial power systems. This capacitor offers 22uF capacitance at 6.3V, operating from -55°C to +125°C. It features low ESR, excellent moisture resistance, and stability over time, making it ideal for filters, power supplies, and high-temperature applications. Order online today for fast delivery of this high-performance component, built to meet rigorous industry standards and ensure long-term operational reliability.
Get AVX TCBB226M006CRSZ0700 today—engineered for long-lasting durability and reliable performance in demanding electronic circuits.
Frequently Asked Questions
Where can I buy KYOCERA AVX TCBB226M006CRSZ0700?
You can click on the BUY or RFQ button to purchase TCBB226M006CRSZ0700 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part TCBB226M006CRSZ0700?
You can download the TCBB226M006CRSZ0700 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of TCBB226M006CRSZ0700?
KYOCERA AVX
