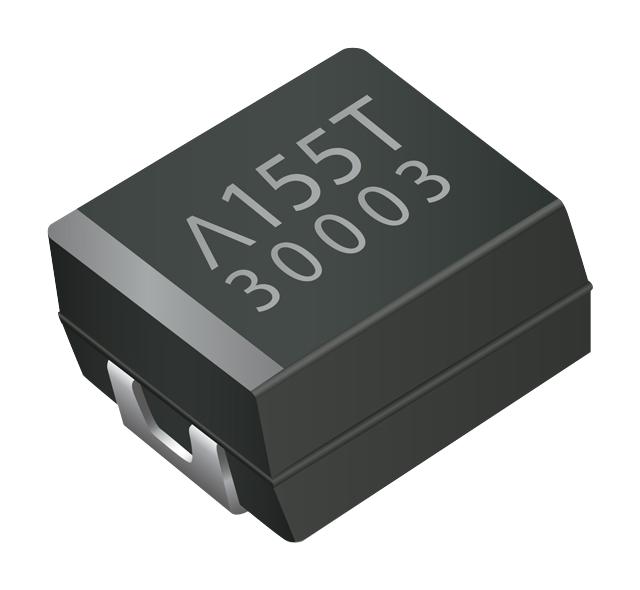

KYOCERA AVX TCBD106M035CRSZ0700 Polymer Capacitor
The TCBD106M035CRSZ0700 is a high-performance, long-life conductive polymer capacitor designed for demanding applications like telecommunications, industrial, and avionics. It features a capacitance of 10uF, rated at 35V, with operating temperature range from -55°C to +125°C. Engineered with RoHS compliance and robust design, it offers high reliability with 0.5%/1000 hrs reliability and excellent surge, humidity, shock, and vibration resistance. Suitable for DC/DC converters, it incorporates low ESR, high endurance, and can withstand multiple reflow cycles, ensuring persistent performance in critical systems.
KYOCERA AVX TCBD106M035CRSZ0700 Polymer Capacitor Specifications:
- Capacitance: 10uF
- Rated Voltage: 35V
- Temperature Range: -55°C to +125°C
- Leakage Current DCL: 0.1CV
- Reliability: 0.5% per 1000 hours at 85°C
- Termination Finish: Sn or SnPb plating
- DCL Max: 70mA at 25V, 125°C
- ESR: Low impedance for high-frequency stability
- Vibration & Shock: MIL-STD-202 compliant
- Reflow Compatibility: 8x at 260°C
- Humidity Resistance: 85°C/85% RH for 500/1000 hours
- Construction: COTS-Plus polymer technology designed for long operational life
Buy the Buy Conductive Polymer Capacitor Part Number TCBD106M035CRSZ0700 Online
Order the AVX conductive polymer capacitor TCBD106M035CRSZ0700 today and ensure your systems operate reliably under demanding conditions. Featuring a 10uF capacitance at 35V, this capacitor is designed for long-term reliability with a temperature range from -55°C to +125°C. It offers low ESR, excellent vibration and shock resistance, and can withstand multiple reflow cycles at 260°C. Perfect for telecom, industrial, and avionics applications, it guarantees stable performance, humidity resistance, and durability, making it an essential component for critical electronic systems.
Buy AVX TCBD106M035CRSZ0700 now and experience unmatched reliability and performance in telecom, industrial, and avionics applications with high endurance and low ESR.
Frequently Asked Questions
Where can I buy KYOCERA AVX TCBD106M035CRSZ0700?
You can click on the BUY or RFQ button to purchase TCBD106M035CRSZ0700 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part TCBD106M035CRSZ0700?
You can download the TCBD106M035CRSZ0700 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of TCBD106M035CRSZ0700?
KYOCERA AVX
