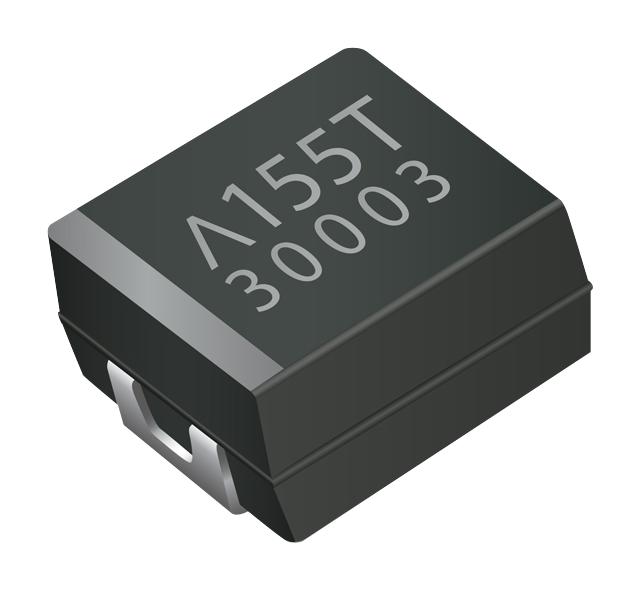

KYOCERA AVX TCBD226M020CRSZ0700 Conductive Polymer Capacitor
The TCBD226M020CRSZ0700 is a high-reliability, conductive polymer capacitor suitable for long-duration DC/DC converter applications in telecommunications, industrial, and avionics. Designed to operate within the temperature range of -55°C to +125°C, it features low ESR, high ripple current capability, and robust construction with RoHS compliance. Its compact size and high capacitance make it ideal for demanding environments needing stability and durability under humid, shock, and vibration conditions, ensuring efficiency and extended operational lifespan in critical electronic systems.
KYOCERA AVX TCBD226M020CRSZ0700 Conductive Polymer Capacitor Specifications:
- Capacitance: 220 µF
- Rated Voltage: 20V
- Temperature Range: -55°C to +125°C
- ESR: Max. 70 mΩ at 100kHz RMS
- Leakage Current: 0.1CV or less
- Reliability: 0.5% per 1000 hours at 85°C, Vr
- Durability: Endurance test of 2000 hours at 125°C
- DCL: Max. 3 x initial limit after tests
- Size: B case, dimensions approximately 7.3mm x 4.3mm
- Construction: RoHS compliant, Sn or SnPb termination
- Shock and Vibration: MIL-STD-202 compliant
- Reflow soldering: 8x at 260°C
Buy the AVX Series TCB: Conductive Polymer Capacitor 220 µF 20V TCBD226M020CRSZ0700
Order the AVX Conductive Polymer Capacitor TCBD226M020CRSZ0700 online today and benefit from reliable, high-performance components designed for demanding environments. Its low ESR, high ripple current capacity, and durability ensure optimal performance in telecom, industrial, and avionics systems. Suitable for long life applications from -55°C to +125°C, this capacitor guarantees stability, reduced parametric shifts, and extended operational lifespan. Purchase now for swift delivery and elevate your electronic system’s reliability and efficiency.
Buy AVX conductive polymer capacitor TCBD226M020CRSZ0700 now and experience unmatched reliability and performance for critical electronic applications.
