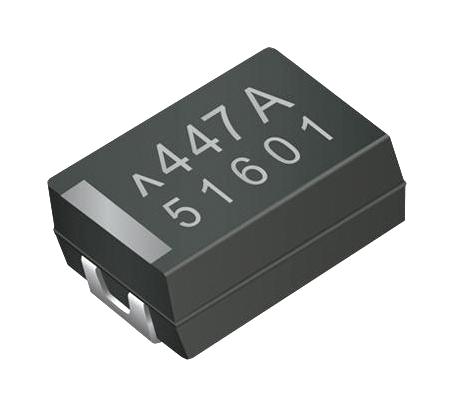

KYOCERA AVX TCME687M004R0010E Conductive Polymer Capacitor
The Conductive Polymer Solid Electrolytic Chip Multianode Capacitor features a conductive polymer electrode and multianode design, offering excellent frequency retention and low ESR. It complies with RoHS standards, is lead-free compatible, and suitable for high-power applications such as telecommunication routers and base stations. With a wide capacitance range of 10uF to 1000uF, it operates from -55°C to +125°C and provides reliable performance with low leakage current, high endurance, and stability under environmental stresses. Its compact case dimensions and robust construction make it ideal for advanced electronic circuits requiring high reliability.
KYOCERA AVX TCME687M004R0010E Conductive Polymer Capacitor Specifications:
- Capacitance Range: 10uF to 1000uF
- Capacitance Tolerance: +20%
- Leakage Current DCL: 0.1CV
- Temperature Range: -55°C to +125°C
- Termination Finish: SnPb or Tin Lead
- ESR Ratings: in milliohms, depending on model (e.g., 3xreflow compatible)
- Case Dimensions: varies as per series, typical case sizes are 7.30mm (0.287 inches) and similar
- Voltage Ratings: from 2.5V to 50V DC
- Reliability: 1% per 1000 hours at 85°C
- Humidity: withstands 95% relative humidity for 500 hours
- RoHS Compliant and Lead-Free Compatible
- Services high power DC/DC circuits, telecommunication, base stations
- Rated Voltage: 2.5V, 4V, 6.3V, 10V, 16V, 20V, 25V, 35V, 50V
- Operating Temperature: -55°C to +125°C
- Endurance: 2000 hours at 125°C with minimal ESR increase
- Additional features include hermetic sealing options and high-energy configurations
Buy the AVX TCME687M004 – Reliable Conductive Polymer Capacitors for Industrial Applications
Purchase the AVX Conductive Polymer Capacitor series TCME687M004 online today and benefit from advanced electrolyte technology, wide temperature operation, and high reliability for demanding industrial, telecom, and high-power electronic applications. Reliable and RoHS compliant, these capacitors provide low ESR, excellent frequency retention, and long endurance, ensuring stable performance under environmental stresses. Perfect for modern electronic designs requiring compact size, high energy density, and robust construction. Buy now and enhance your project’s performance with the trusted quality of AVX capacitors.
Order your AVX Conductive Polymer Capacitor series TCME687M004 today and ensure your electronic projects meet the highest reliability standards.
Frequently Asked Questions
Where can I buy KYOCERA AVX TCME687M004R0010E?
You can click on the BUY or RFQ button to purchase TCME687M004R0010E from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part TCME687M004R0010E?
You can download the TCME687M004R0010E datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of TCME687M004R0010E?
KYOCERA AVX
