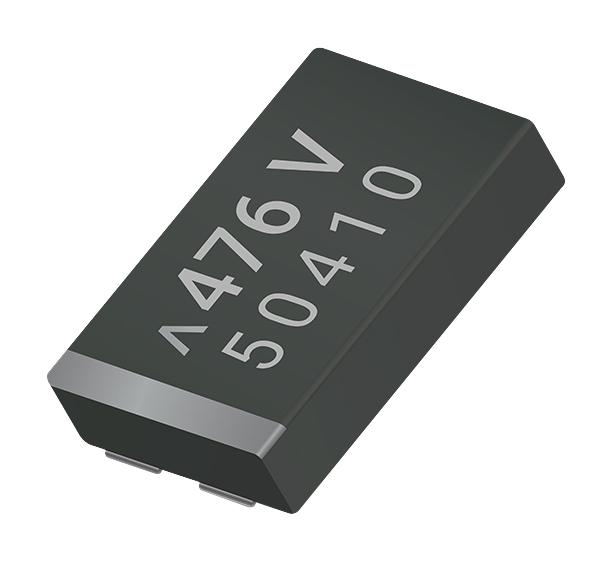

KYOCERA AVX TCNZ476M035R0150E Conductive Polymer Capacitor
The TCNZ476M035R0150E is a high-performance conductive polymer chip capacitor designed for low-profile applications, offering high CV/cc and excellent reliability. Suitable for consumer electronics, decoupling, and system on chip (SoC) filtering, it featuresundertab terminations for high volumetric efficiency and dense PCB mounting. Compliant with RoHS standards, it supports reflow soldering up to 260°C, and has a broad temperature range from -55°C to +105°C, making it ideal for industrial and automotive uses with low ESR and benign failure modes.
KYOCERA AVX TCNZ476M035R0150E Conductive Polymer Capacitor Specifications:
- Capacitance Range: 4.7 uF to 1500 pF
- Capacitance Tolerance: +20%
- Leakage Current DCL: 0.1CV
- Rated Voltage DC: 6.3V, 10V, 16V, 20V, 25V, 35V, 50V (depending on series)
- Category Voltage: +105°C: 5V, 8V, 13V, 16V, 20V, 28V, 40V
- Surge Voltage: +85°C: 8V, 13V, 21V, 26V, 33V, 46V, 65V
- Temperature Range: -55°C to +105°C
- Maximum ESR: 1.25 times catalog limit after mounting
- Endurance: 2000 hours at +105°C with rated voltage
- Storage Conditions: 2000 hours at 105°C without voltage, 800 hours at 85°C and 95% humidity
- Construction: Conductive polymer electrode, Tantalum/ Niobium oxide anode
- Manufacturer Certifications: RoHS compliant, lead-free, reflow compatible
- Physical Dimensions: Case sizes from 4.7 uF to 1500 pF, various physical dimensions according to model
Buy the KYOCERA TCNZ476M035R0150E – Reliable Conductive Polymer Capacitors for Industrial Applications
Order the KYOCERA Conductive Polymer Capacitor TCNZ476M035R0150E today to benefit from high CV/cc, low ESR, and superior reliability. Perfect for decoupling, filtering, and high-density PCB applications in industrial, automotive, and consumer electronics. This RoHS compliant, lead-free capacitor supports reflow soldering up to 260°C, ensuring easy assembly. Its broad temperature range from -55°C to +105°C guarantees stability under various operating conditions. Enhance your electronic designs with this compact, high-performance capacitor that offers a benign failure mode and long operational life.
Buy KYOCERA TCNZ476M035R0150E now and experience unmatched reliability and performance suited for demanding electronic circuits.
Frequently Asked Questions
Where can I buy KYOCERA AVX TCNZ476M035R0150E?
You can click on the BUY or RFQ button to purchase TCNZ476M035R0150E from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part TCNZ476M035R0150E?
You can download the TCNZ476M035R0150E datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of TCNZ476M035R0150E?
KYOCERA AVX
