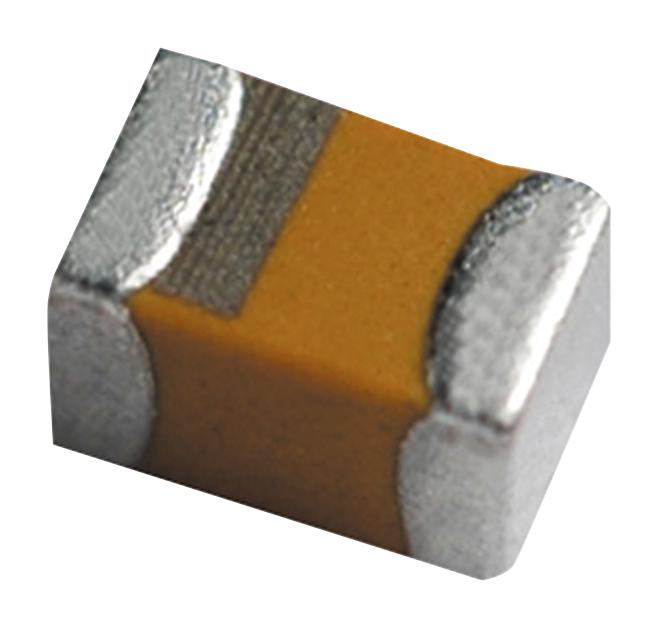

KYOCERA AVX TPCL106K006R4000 Low ESR Tantalum Capacitor
The TPCL106K006R4000 is a low ESR tantalum capacitor from the TPC series featuring a compact design suitable for power supply applications. It offers capacitance from 1.0 to 100µF with voltage ratings up to 25V, ensuring reliable performance in portable controllers and high-demand electronic devices. Utilizing conductive polymer technology, this lead-free component provides excellent frequency response and stability across temperatures from -55°C to +125°C. Its small form factor and RoHS compliance make it ideal for modern, environmentally conscious electronic designs.
KYOCERA AVX TPCL106K006R4000 Low ESR Tantalum Capacitor Specifications:
- Capacitance: 1.0 to 100µF
- Rated Voltage: up to 25V
- Capacitance Tolerance: +10%; +20%
- Leakage Current: 0.01CV or 0.5µA (whichever is greater)
- Temperature Range: -55°C to +125°C
- Surge Voltage at 85°C: 3.9V to 32V depending on voltage rating
- Category Voltage at 125°C: 2V to 20V
- Reliability: 1% per 1000 hours at 85°C, Vp
- Termination Finish: Tin over Nickel, optional Gold plating
- Case Sizes Available: 0805, 0603, 0402, 1206
- RoHS compliant, Lead-Free, Small Profile, Suitable for Portable & Power Supply use
Buy the AVX Series TPC: Low ESR Tantalum Capacitor TPCL106K006R4000
Discover the versatility of the AVX Series TPC low ESR tantalum capacitor TPCL106K006R4000, designed for high-performance power management in portable electronics and industrial applications. With a capacitance range from 1.0 to 100µF and voltage ratings up to 25V, this component offers excellent stability, reliability, and low equivalent series resistance (ESR). Its small form factor and RoHS compliance make it an ideal choice for environmentally conscious design integration. Purchase online now to ensure your projects meet high standards of quality and efficiency.
Order your AVX Series TPC high-reliability tantalum capacitor TPCL106K006R4000 today and enhance your power supply modules with superior performance and environmental compliance.
Frequently Asked Questions
Where can I buy KYOCERA AVX TPCL106K006R4000?
You can click on the BUY or RFQ button to purchase TPCL106K006R4000 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part TPCL106K006R4000?
You can download the TPCL106K006R4000 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of TPCL106K006R4000?
KYOCERA AVX
