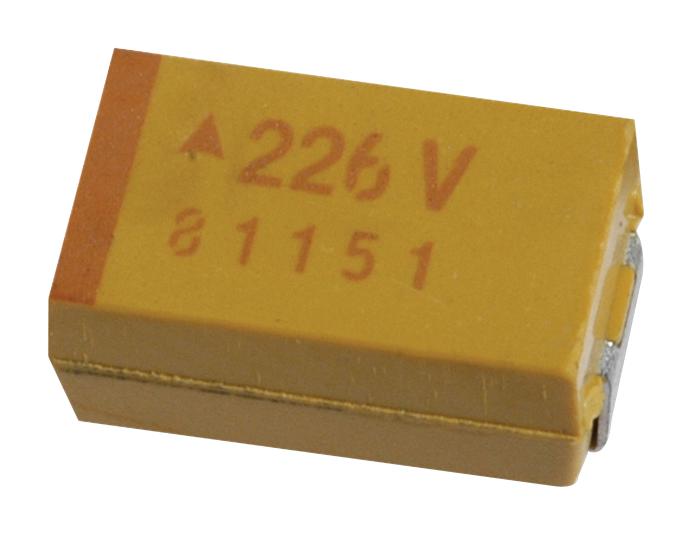

KYOCERA AVX TPSB226K020T0600 Low ESR Automotive Tantalum Capacitor
The TPS Automotive Low ESR Tantalum Capacitor series offers reliable, high-performance capacitors with low equivalent series resistance suitable for automotive applications. Featuring a capacitance of 22 uF, rated voltage of 20V, and a temperature range of -55°C to +125°C, these RoHS-compliant, lead-free components meet industry standards like AEC-Q200. They are tested for surge current capability, have low leakage, and meet moisture sensitivity and reflow specifications, ensuring durability and high reliability in demanding environments.
KYOCERA AVX TPSB226K020T0600 Low ESR Automotive Tantalum Capacitor Specifications:
- Capacitance: 22 uF
- Rated Voltage DC: 20V
- Category Voltage DC: 13. V
- Surge Voltage: 26V
- Temperature Range: -55°C to +125°C
- ESR max.: 0.6 Ohm @ 100kHz
- Dissipation Factor max.: 6% @ 120Hz
- Leakage Current: 4.4 NA
- RoHS compliant, lead-free
- Meets AEC-Q200 standards
- Reflow standard: J-STD-020
- Moisture sensitivity level: MSL 1
- Weight: 68 mg (B case)
- Capacitance tolerance: ±10%
Buy the AVX Series Low ESR Automotive Tantalum Capacitor: TPSB226K020T0600
Enhance your automotive electronics with the AVX low ESR tantalum capacitor. Featuring 22 uF capacitance, 20V rating, and -55°C to +125°C temperature range, it offers high reliability, low leakage, and industry-standard RoHS compliance. Perfect for demanding environments, this component is surge current tested, meets AEC-Q200 standards, and complies with reflow and moisture sensitivity standards. Available in reel packaging for easy sourcing, order now to ensure the durability and optimal performance of your electronic systems.
Buy AVX TPSB226K020T0600 low ESR automotive tantalum capacitor now and experience unmatched reliability and performance in your electronic designs.
