KYOCERA AVX USB0006WP Low Capacitance Multilayer Varistor
USB Series varistors are designed to protect high-speed data lines from ESD transients, featuring very low capacitance of around 6pF and fast response times. These multilayer, zinc oxide-based devices meet IEC 61000-4-2 standards, providing effective ESD immunity up to 15kV air discharge and 8kV contact discharge. Available in various case sizes including 0402, 0603, 0405, and 0612, they are suitable for USB, Ethernet, and video transmission lines, offering low clamping voltage, high inrush current capability, and brief turn-on times for reliable data line protection.
KYOCERA AVX USB0006WP Low Capacitance Multilayer Varistor Specifications:
- Operating Temperature: -55°C to 125°C
- Maximum Discharge Voltage: 45kV (air), 8kV (contact)
- Case Sizes: 0402, 0603, 0405 2x array, 0612 4x array
- Typical Capacitance: 3pF, 6pF, 10pF
- Working Voltage: < 18Vdc
- Response Time: < 1ns
- Soldering Temperature: 260°C
- Transient Energy Rating: Varies by model, typically around 0.015J
- Peak Current: Up to 300A for some models
- Electrical Advantages: Fast turn-on, high in-rush current capability, low clamping voltage
- Certifications: IEC 61000-4-2 compliant
- Mechanical: Surface-mount packages with various element configurations
- Protection Level: Ensures robust ESD immunity for high-speed data lines
- Device Type: ZnO-based multilayer varistor, bi-directional, non-linear voltage-current characteristic

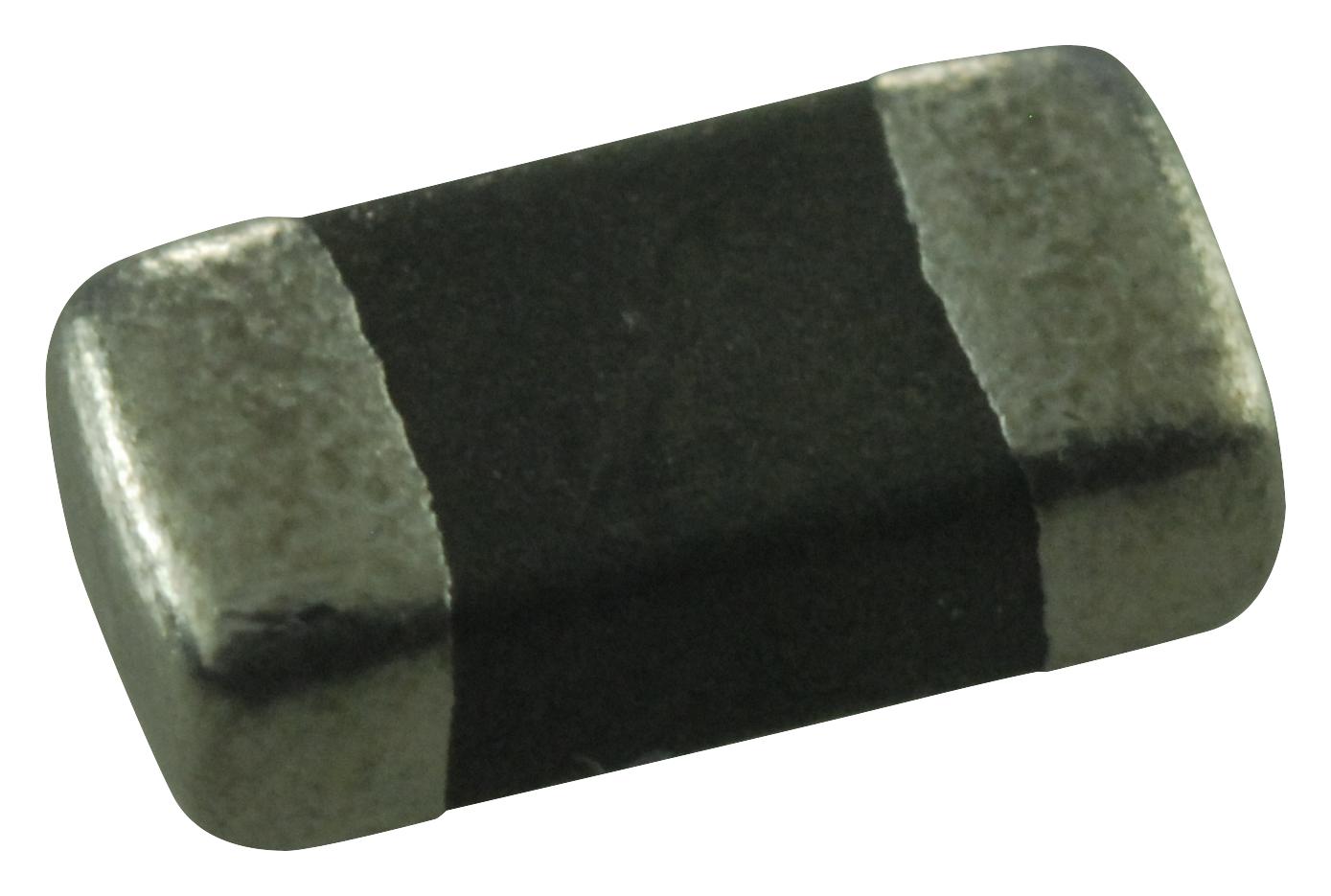

Buy the Buy AVX USB Series Varistor Part Number USB0006WP Online
Protect your sensitive high-speed data lines with the AVX USB Series low capacitance multilayer varistor. Designed to meet IEC standards, it offers fast response, high inrush current capability, and excellent ESD immunity. Suitable for USB, Ethernet, and video applications, this surface-mount device ensures reliable performance in demanding environments. Low clamping voltage and small sizes make it ideal for compact designs. Order online now to secure dependable, high-quality ESD protection for your electronics projects today.
Order your AVX USB Series USB0006WP today and ensure reliable protection for your high-speed data lines with this low capacitance multilayer varistor.
Frequently Asked Questions
Where can I buy KYOCERA AVX USB0006WP?
You can click on the BUY or RFQ button to purchase USB0006WP from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part USB0006WP?
You can download the USB0006WP datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of USB0006WP?
KYOCERA AVX
