KYOCERA AVX V2F105A150Y2EDP Multilayer Ceramic TVS Suppressor

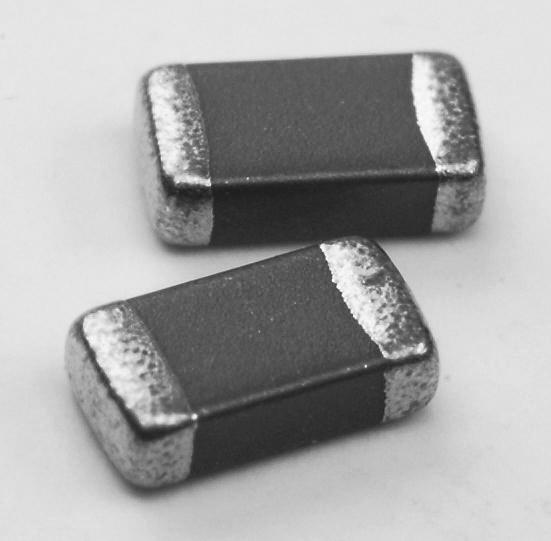

The TransFeed product combines transient voltage suppression and EMI attenuation in a single 0805 chip. It features fast response times below 250 picoseconds, significantly faster than traditional TVS devices, and offers broadband EMI filtering. Its multilayer ceramic construction minimizes parasitic inductance, enabling superior transient suppression and broad-spectrum EMI attenuation. Ideal for microcontroller I/O lines, power line conditioning, and electronic circuit protection, its small size and high efficiency make it suitable for automotive, communications, and industrial applications requiring reliable overvoltage, ESD, and EMI protection.
KYOCERA AVX V2F105A150Y2EDP Multilayer Ceramic TVS Suppressor Specifications:
- Case Size: 0805
- Working Voltage: 5.6VDC
- Clamping Voltage: 8.5V
- Peak Current: 18A
- Energy Rating: 0.05 - 0.3 Joules
- Response Time: <250 ps
- Temperature Range: -55°C to +125°C
- Material: Multilayer ceramic with zinc oxide varistor
- Package Type: Feedthrough chip
- Maximum Feedthrough Current: 0.5 - 1A
- Size Dimensions: Length 2.0 mm, Width 1.25 mm, Thickness 1.14 mm
- Solder Pad Layout: 3.45mm x 0.51mm, 0.76mm height, pad width 0.50mm
- Frequency Response: Broadband EMI attenuation
Buy the AVX V2F105A150Y2EDP – Reliable Transient Voltage Suppressor for Industrial Applications
Enhance your circuit protection with the AVX V2F105A150Y2EDP. This compact 0805 chip offers rapid transient response under 250 ps and broad EMI attenuation, ideal for automotive, industrial, and consumer electronics. Its multilayer ceramic design reduces parasitic inductance for faster clamp times and improved reliability. Perfect for microcontroller I/O, power line conditioning, and electronic safeguards, this versatile device combines overvoltage suppression and EMI filtering in a small footprint. Buy online today to safeguard your devices with top-tier transient and EMI protection.
Buy AVX V2F105A150Y2EDP now and experience unmatched transient suppression and EMI filtering for robust electronic circuit protection.
Frequently Asked Questions
Where can I buy KYOCERA AVX V2F105A150Y2EDP?
You can click on the BUY or RFQ button to purchase V2F105A150Y2EDP from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part V2F105A150Y2EDP?
You can download the V2F105A150Y2EDP datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of V2F105A150Y2EDP?
KYOCERA AVX
