KYOCERA AVX VCAS121026H560DP Automotive Load Dump Varistor
The VCAS121026H560DP is a multilayer varistor designed for automotive voltage transient protection, EMI/RFI attenuation, and load dump suppression. Suitable for high-energy absorption in automotive and hybrid electric vehicle applications, it features bi-directional overvoltage protection with fast response times, high current handling capacity, and excellent reliability. Its batch includes variations with different voltage ratings and physical sizes, making it versatile for various automotive circuit protection needs. It ensures safety in modern vehicles against transient voltage spikes and electromagnetic interference.
KYOCERA AVX VCAS121026H560DP Automotive Load Dump Varistor Specifications:
- Case Size: 1206 (3.2 x 1.6 mm)
- Dimensions: Length 3.2 mm, Width 1.6 mm, Max Thickness 0.9 mm
- Maximum Land Length: 1.4 mm
- Working Voltage: 16V to 85V depending on variant
- Clamping Voltage: Varies with voltage rating, typical range 38V to 85V
- Energy Dissipation: Up to 4 Joules for load dump protection
- Response Time: Sub nanoseconds for ESD strikes
- Non-linear, bi-directional voltage-current characteristics
- Material: Zinc oxide (ZnO) based ceramic semiconductor
- Surge Current Rating: Up to 160A (peak)
- Capacitance: Ranges from 30 pF to 400 pF depending on size and model
- Certification: Qualified for automotive applications (AEC Q200)

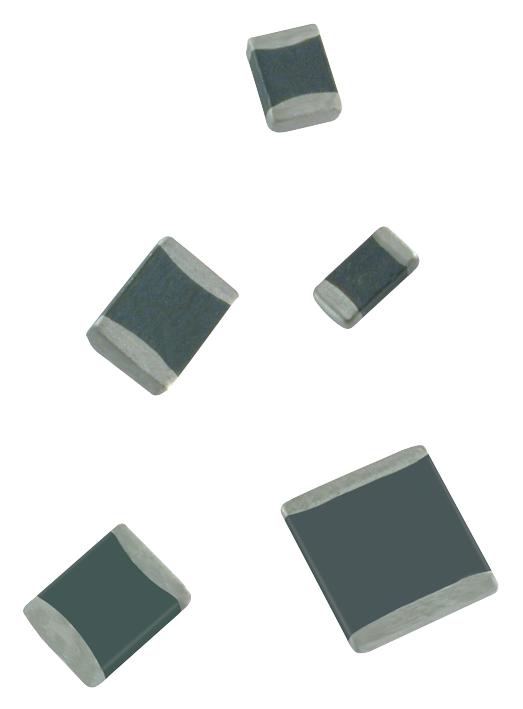

Buy the Buy Automotive Varistor Part Number VCAS121026H560DP Online
Order the Automotive Load Dump Varistor online today for reliable overvoltage protection in automotive circuits. Designed with high energy absorption, fast response, and bi-directional voltage handling to safeguard modern vehicles from transients, load dump pulses, and EMI/RFI interference. Its compact size fits easily into automotive modules, ensuring safety and integrity in ICE, hybrid, and electric vehicles. Purchase now to ensure your automotive systems are protected by high-quality, automotive-grade surge protection components that meet industry standards for durability and performance.
Get Automotive Varistor VCAS121026H560DP today—engineered for fast transient response and high-energy load dump suppression.
Frequently Asked Questions
Where can I buy KYOCERA AVX VCAS121026H560DP?
You can click on the BUY or RFQ button to purchase VCAS121026H560DP from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part VCAS121026H560DP?
You can download the VCAS121026H560DP datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of VCAS121026H560DP?
KYOCERA AVX
