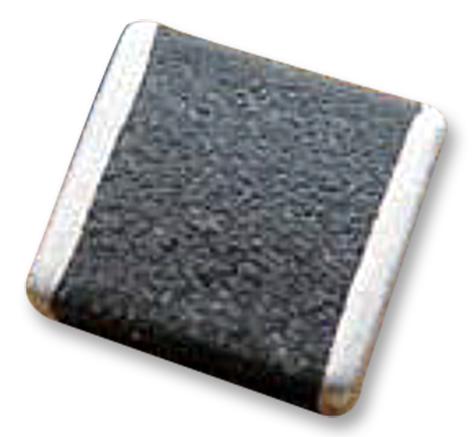

KYOCERA AVX VG181226P570DP high-energy glass varistor
The Glass Encapsulated TransGuard multilayer varistors are zinc oxide (ZnO) based ceramic devices offering bi-directional overvoltage protection and EMI/RFI attenuation. Available in various case sizes including 1206, 1812, and 2220, they provide high energy and peak current capabilities suitable for harsh environments, such as industrial and commercial applications. Their glass encapsulation enhances resistance against acids, salts, and chlorite flux, making them ideal for protecting ICs, relays, sensors, and in smart grid systems. These varistors feature fast response times and multi-strike capability for reliable surge suppression.
KYOCERA AVX VG181226P570DP high-energy glass varistor Specifications:
- Case Sizes: 1206, 1812, 2220, 3020, 080216, 1210, 2220, 3020, 26131, 65131, 7111, 9511, 115111, 126131, 135131, 165131, 165161, 165182, 165202, 165231, 165261, 165291, 165321, 165351, 165381, 165411, 165441, 165471, 165501, 165531, 165561, 165591, 165621, 165651, 165681, 165711, 165741, 165771, 165801, 165831, 165861, 165891, 165921, 165951, 165981, 166011, 166041, 166071, 166101, 166131, 166161, 166191, 166221, 166251, 166281, 166311, 166341, 166371, 166401, 166431, 166461, 166491, 166521, 166551, 166581, 166611, 166641, 166671, 166701, 166731, 166761, 166791, 166821, 166851, 166881, 166911, 166941, 166971, 167001, 167031, 167061, 167091, 167121, 167151, 167181, 167211, 167241
- Operating Temperature: -55°C to 125°C
- Working Voltage: 16-85Vdc
- Peak Current: 200-2000A
- Energy: 0.7-12J
- Physical Dimensions: Size (EIA): 1206 - Length 3.20 mm, Width 2.00 mm, Max Thickness 1.70 mm; 1812 - Length 4.50 mm, Width 3.20 mm, Max Thickness 2.00 mm; 2220 - Length 5.70 mm, Width 4.00 mm, Max Thickness 2.50 mm; 3020 - Length 8.20 mm, Width 4.00 mm, Max Thickness 2.50 mm
- Clamping Voltage: Varies from 40V to 165V depending on model
- Capacitance: Typically 150 pF to 5000 pF depending on model
- Peak Current Rating: Up to 2000A for high energy applications
- Response Time: Sub 1nS to ESD strike
- Encapsulation: Glass for environmental and acid resistance
Buy the AVX 570 U+2013 Reliable High-Energy Varistor for Industrial Applications
Secure your circuits and protect valuable components with the high-energy glass encapsulated varistor. Designed for industrial environments, it provides bi-directional overvoltage protection, fast response time, and excellent resistance against acids and salts. Easy to install in SMT packages like 1206 or 2220, these varistors are suitable for IC protection, relays, sensors, and smart grid systems. Purchase online now to benefit from dependable surge suppression and environmental durability for your critical applications.
Order your AVX Series VG181226P570 high-energy glass encapsulated varistor today and ensure reliable surge suppression in harsh environments.
Frequently Asked Questions
Where can I buy KYOCERA AVX VG181226P570DP?
You can click on the BUY or RFQ button to purchase VG181226P570DP from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part VG181226P570DP?
You can download the VG181226P570DP datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of VG181226P570DP?
KYOCERA AVX
