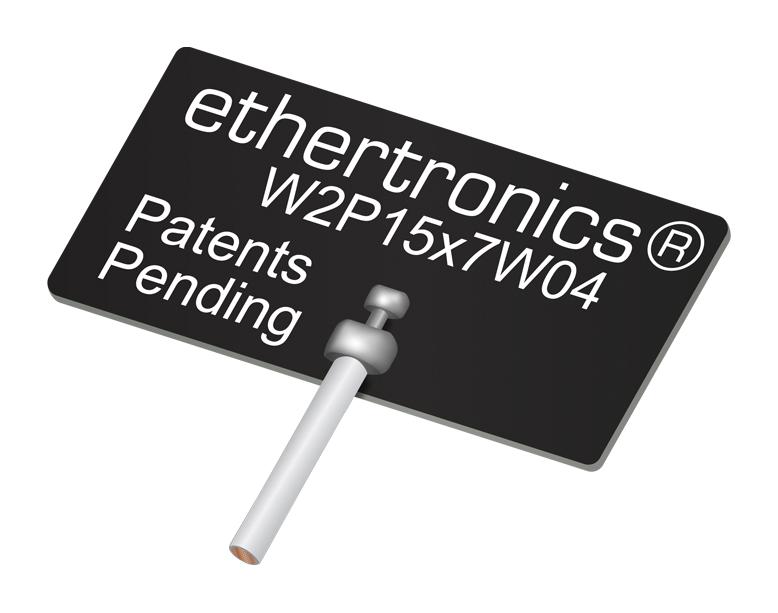

KYOCERA AVX W2P15X7W04U100D3B0A Wi-Fi Antenna
The embedded Wi-Fi antenna supports 5 and 6 GHz frequency bands, suitable for applications such as access points, routers, gateways, and IoT devices. It features a compact size with dimensions of 15.90 mm in length, 7.60 mm in width, and 0.4 mm thickness, with a 100 mm cable length and u.FL connector compatibility. Its efficiency is approximately 70%, with a peak gain of less than 4.3 dBi. The antenna is RoHS compliant, designed to maximize coverage, speed, and reliability in modern wireless systems, including smart home, healthcare, automotive, and industrial applications.
KYOCERA AVX W2P15X7W04U100D3B0A Wi-Fi Antenna Specifications:
- Frequency Range: 5.150 — 5.850 GHz and 5.925 — 7.125 GHz
- Return Loss: <-9.0 dB at 5.150-5.850 GHz, <-7.3 dB at 5.925-7.125 GHz
- Average Efficiency: 70%
- Peak Gain: < 4.3 dBi (5 GHz), < 3.9 dBi (6 GHz)
- Feed Point Impedance: 50 ohms unbalanced
- Dimensions: Length 15.90 mm ± 0.15 mm, Width 7.60 mm ± 0.15 mm, Thickness 0.4 mm
- Cable Length: 100 mm
- Connector: u.FL compatible
- Weight: 0.3 grams
- Adhesive: 3M468MP
- RoHS compliant
- Support for Wi-Fi 5 & 6 GHz applications
- Designed for surface mounting with foam on the back for minimized detuning
- Applications include access points, routers, M2M devices, gateways, and industrial IoT
Buy the Ethertronics Series Wi-Fi Antenna: W2P15X7W04-U100D3B0A
Enhance your wireless devices with the Ethertronics Wi-Fi antenna supporting 5 and 6 GHz bands. Its compact design and high efficiency ensure superior network coverage, faster data rates, and reliable connections for access points, routers, IoT devices, and industrial applications. The antenna features a 15.90 mm length, 7.60 mm width, 0.4 mm thickness, with a 100 mm u.FL cable, and is RoHS compliant. Easy to install surface mounting with foam minimizes detuning, making it ideal for modern high-speed wireless networks.
Buy Ethertronics W2P15X7W04-U100D3B0A now and experience unmatched reliability and performance in wireless connectivity.
Frequently Asked Questions
Where can I buy KYOCERA AVX W2P15X7W04U100D3B0A?
You can click on the BUY or RFQ button to purchase W2P15X7W04U100D3B0A from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part W2P15X7W04U100D3B0A?
You can download the W2P15X7W04U100D3B0A datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of W2P15X7W04U100D3B0A?
KYOCERA AVX
