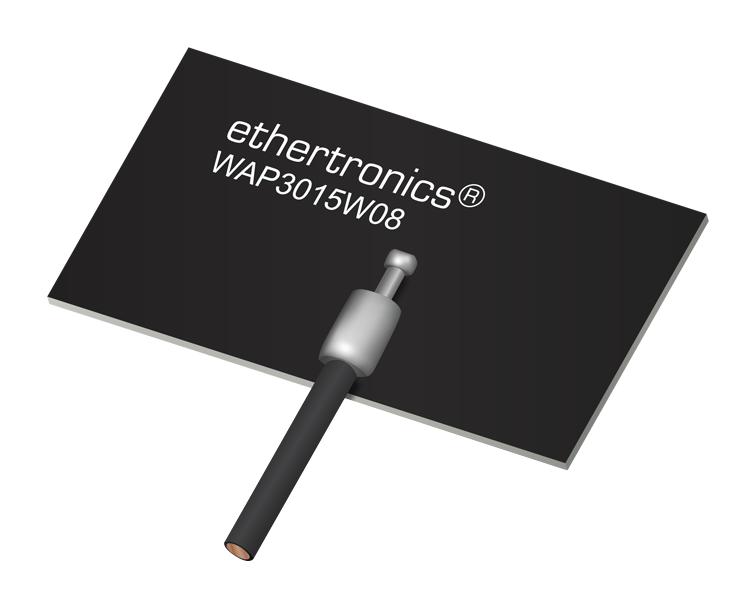

KYOCERA AVX WAP3015W08U100D3B0A Wi-Fi Antenna
The embedded dual-band Wi-Fi antenna supports 2.4 and 5 GHz frequencies, designed for access points, routers, and gateways. It features a miniaturized form factor with multiple radiation pattern options for optimized signal coverage and throughput. Its compact design eliminates the need for whip or stub antennas, making it ideal for slim devices. Supported by extensive RF engineering expertise and global design support, this antenna offers high efficiency, simplified integration, RoHS compliance, and versatile mounting options, ensuring reliable wireless connectivity in modern wireless devices.
KYOCERA AVX WAP3015W08U100D3B0A Wi-Fi Antenna Specifications:
- Frequency: 2.4 GHz and 5 GHz
- Return Loss: < -8.4dB at 2.4 GHz, < 8.7dB at 5 GHz
- Efficiency: 65% at 2.4 GHz, 61% at 5 GHz
- Peak Gain: < 3 dBi at 2.4 GHz, < 6.7 dBi at 5 GHz
- Feed Point Impedance: 50 ohms unbalanced
- Size: 15.50 + 0.15 mm (width), 30.00 + 0.15 mm (length), 0.80 + 0.05 mm (thickness)
- Cable Length: 100 mm
- Connector: u.fl compatible
- Material: PC/ABS plastic
- Adhesive: 3M468MP
- RoHS Compliant
- Supported Applications: Access points, routers, gateways, Wi-Fi-enabled TVs and monitors
- Mechanical Design: Supports multiple radiation pattern orientations with a single outline
Buy the Ethertronics Series WXP3015W08 Wi-Fi Antenna: WXP3015W08-U100D3B0A
Purchase the Ethertronics Series WXP3015W08 Wi-Fi antenna online today and experience superior wireless coverage in your devices. Its compact design, dual-band support for 2.4 and 5 GHz, and multiple radiation pattern options ensure optimal signal strength and system throughput. Easy to integrate with its u.fl connector and adhesive backing, this antenna supports access points, routers, and gateways, making it ideal for modern, slim wireless devices. Reliable and RoHS compliant, it’s perfect for enhancing connectivity in a variety of networking products.
Order your Ethertronics Series WXP3015W08 Wi-Fi antenna today and enhance your wireless device’s coverage with a reliable, miniaturized design.
Frequently Asked Questions
Where can I buy KYOCERA AVX WAP3015W08U100D3B0A?
You can click on the BUY or RFQ button to purchase WAP3015W08U100D3B0A from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part WAP3015W08U100D3B0A?
You can download the WAP3015W08U100D3B0A datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of WAP3015W08U100D3B0A?
KYOCERA AVX
