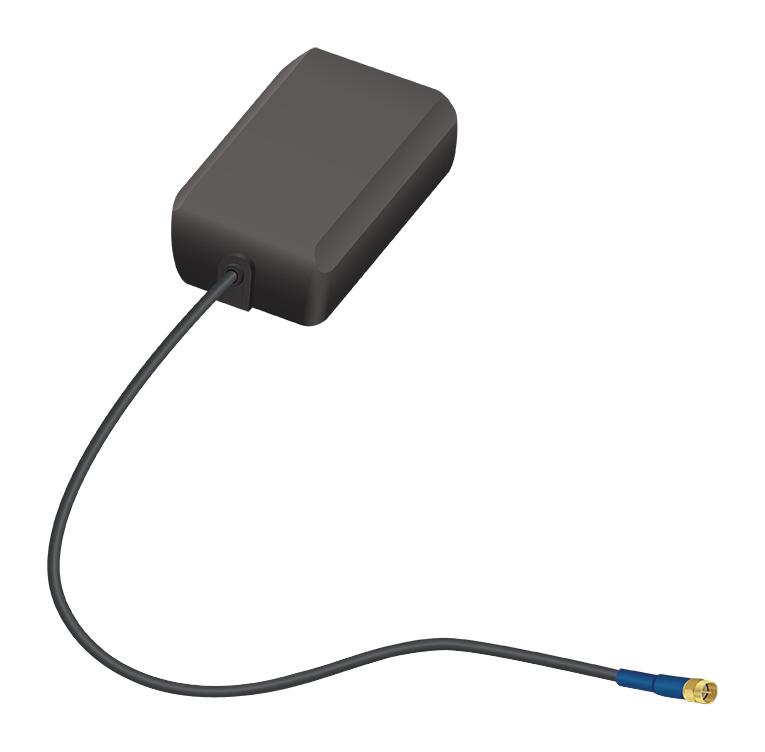

KYOCERA AVX X1005247GNA1SA10A1 GNSS External Antenna
The GNSS active external antenna X1005247-GNA1SA10A1 by Ethertronics offers reliable signal reception across multiple frequencies including 1561, 1575, and 1602 MHz, making it ideal for applications like tracking, smart home, agriculture, automotive, healthcare, digital signage, logistics, and industrial devices. It features a gain of 2.0 dBi at 1561 MHz and 4.1 dBi at 1602 MHz, with a VSWR max of 2.0:1, polarization RHCP, and impedance of 50 ohms. Mechanical dimensions are 44.0 x 35.2 x 14.5 mm, weight 68 grams, operational temperature range from -40°C to +85°C, and waterproof IPX7 rating. Designed for high-performance outdoor GNSS applications, it incorporates a foam adhesive mounting, and is RoHS & REACH compliant.
KYOCERA AVX X1005247GNA1SA10A1 GNSS External Antenna Specifications:
- Frequency: 1561, 1575, 1602 MHz
- Gain at Zenith: 2.0 dBi (1561 MHz), 4.1 dBi (1602 MHz)
- VSWR: 2.0:1 max
- Polarization: RHCP
- Impedance: 50 ohms
- DC Power Input: 3-5 V
- Electrical Properties: Noise Figure 1.1 dB, Power Consumption 9 mA (@ 3.3 V)
- Mechanical Dimensions: 44.0 x 35.2 x 14.5 mm
- Weight: 68 grams
- Operating Temperature: -40°C to +85°C
- Housing Material: PC + ABS (Black)
- Mounting: Foam Adhesive
- Waterproof Rating: IPX7
Buy the Ethertronics X1005247-GNA1SA10A1 – Reliable GNSS External Antenna for Industrial Applications
Enhance your project with the Ethertronics GNSS External Antenna X1005247-GNA1SA10A1. Designed for outdoor use, it offers excellent signal reception across multiple frequencies with high gain and waterproof IPX7 rating. Its compact size, lightweight design, and reliable performance make it perfect for industrial, vehicle tracking, and IoT applications. Easy to install with foam adhesive mounting and compliant with RoHS and REACH standards, this antenna ensures durability and optimal performance in diverse environmental conditions. Order online today for fast, dependable delivery.
Order your Ethertronics X1005247-GNA1SA10A1 outdoor GNSS antenna today and ensure robust signal reception for tracking, IoT, and industrial projects.
Frequently Asked Questions
Where can I buy KYOCERA AVX X1005247GNA1SA10A1?
You can click on the BUY or RFQ button to purchase X1005247GNA1SA10A1 from an authorized KYOCERA AVX distributor.
How do I troubleshoot issues or seek technical support for part X1005247GNA1SA10A1?
You can download the X1005247GNA1SA10A1 datasheet or visit the KYOCERA AVX website for support.
Who is the manufacturer of X1005247GNA1SA10A1?
KYOCERA AVX
